Control System Components

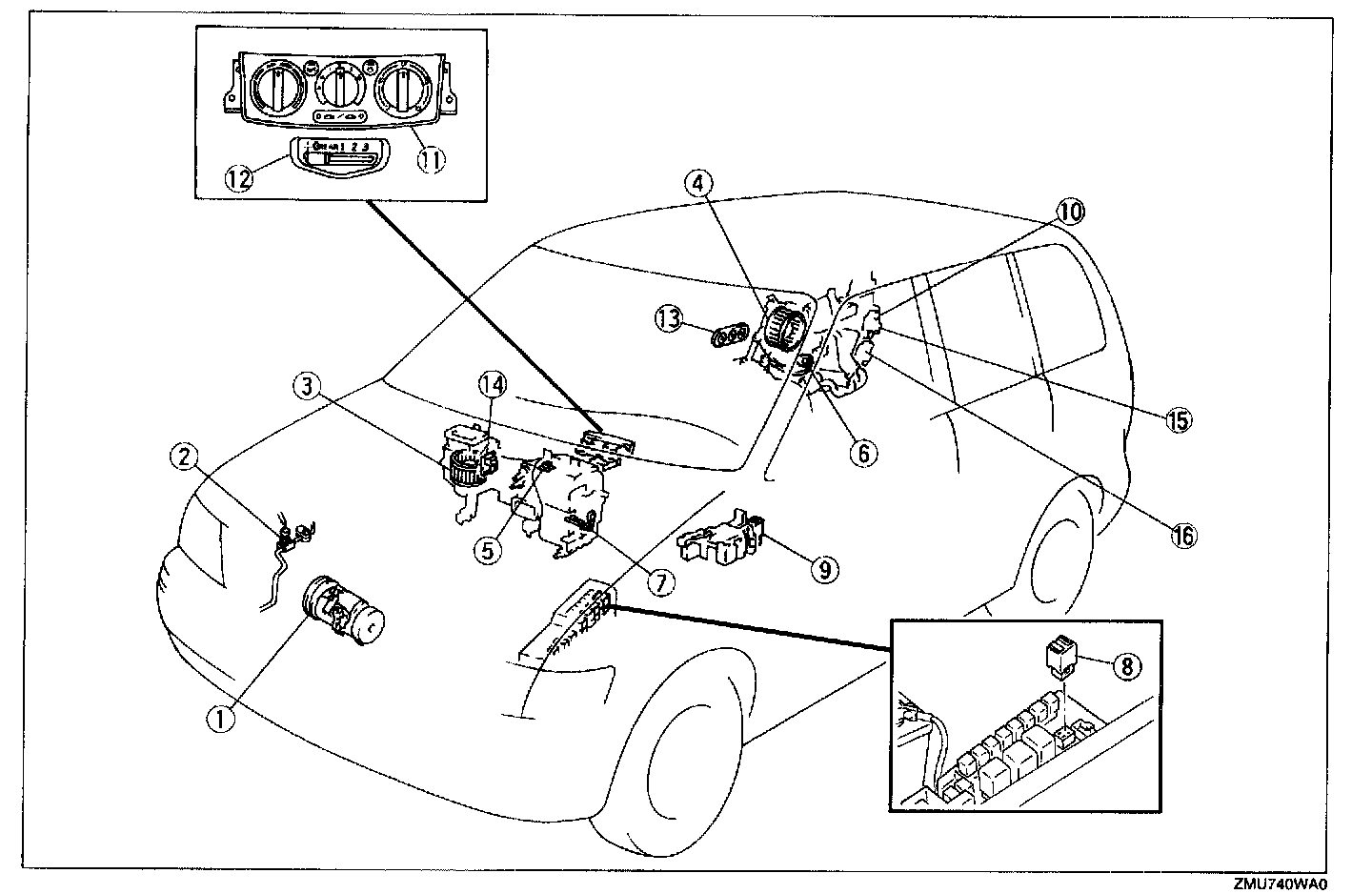

Control System Location Index:

1. Magnetic clutch
2. Refrigerant pressure switch
3. Front blower motor
4. Rear blower motor
5. Front resistor
6. Rear resistor
7. Thermosensor
8. A/C relay
9. Front blower relay
10. Rear blower relay
11. Front climate control unit
12. Rear main fan switch
13. Rear climate control unit
14. Air intake actuator
15. Airflow mode actuator
16. Air mix actuator
