Turn Signal Flasher: Testing and Inspection

FLASHER CONTROL MODULE INSPECTION

1. Remove the bracket and pull it toward you.
2. Measure the voltage at the flasher control module terminals as indicated below.
3. Disconnect the flasher control module connector before inspecting for continuity at terminal F.
- If not as specified, inspect the parts listed under "Action."
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the flasher control module.

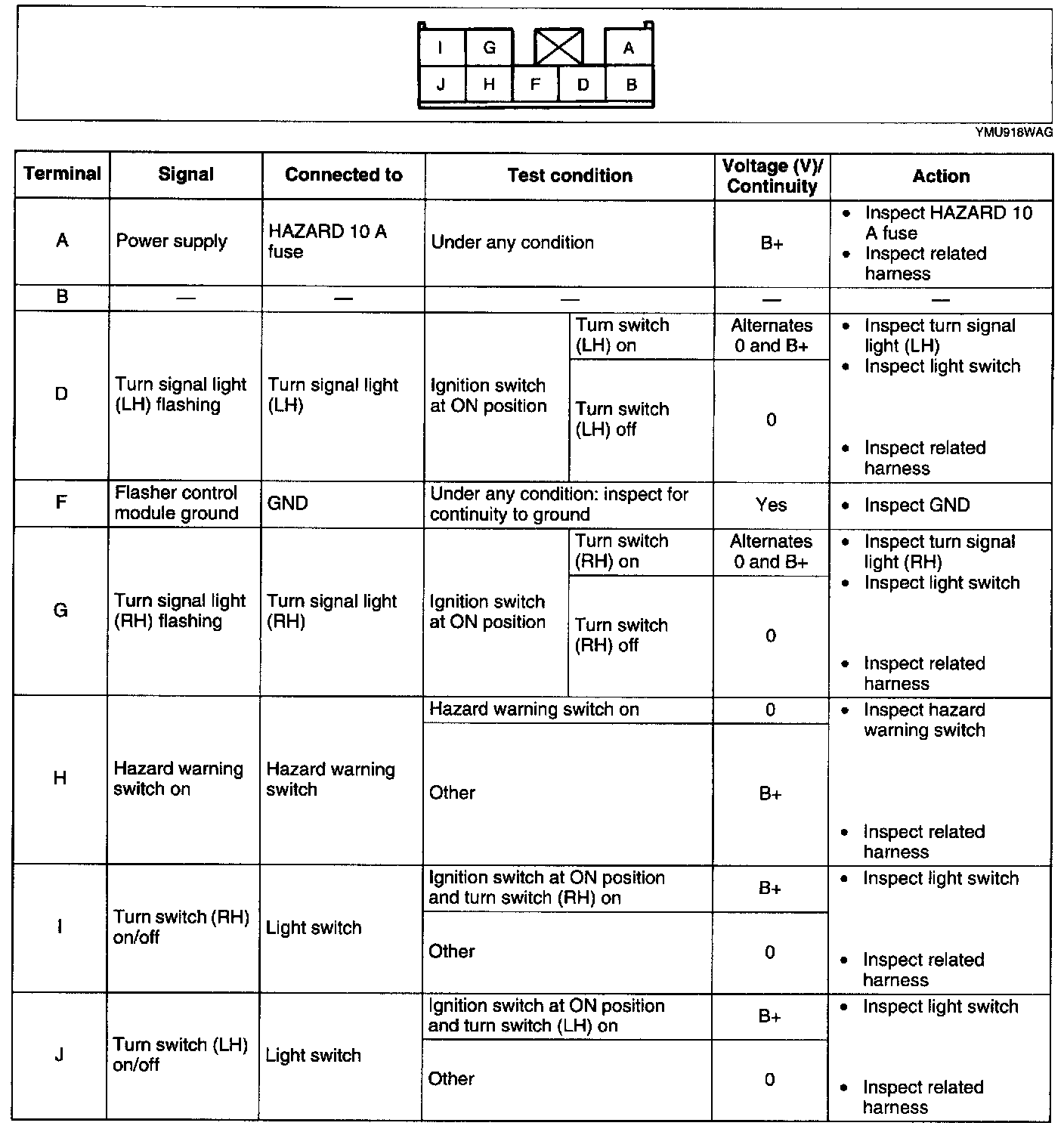

Terminal Voltage Table:

Terminal Voltage Table (Reference)
