Freeze Frame PID Data Access Procedure

NOTE: This is a generic function.

1. Perform the NGS tester hook-up procedure.

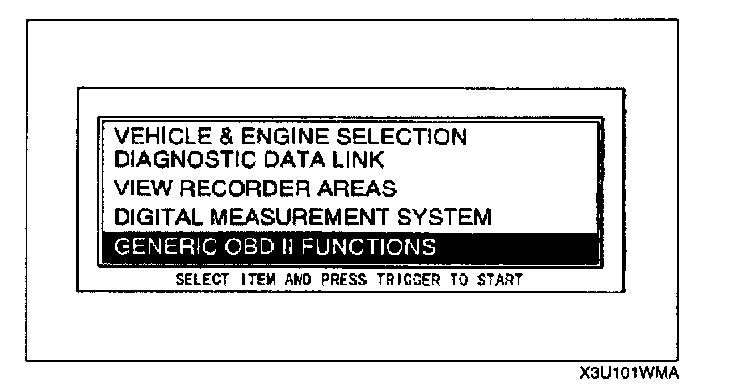

2. Move the cursor to GENERIC OBD II FUNCTIONS.
3. Press the TRIGGER key to enter this selection.

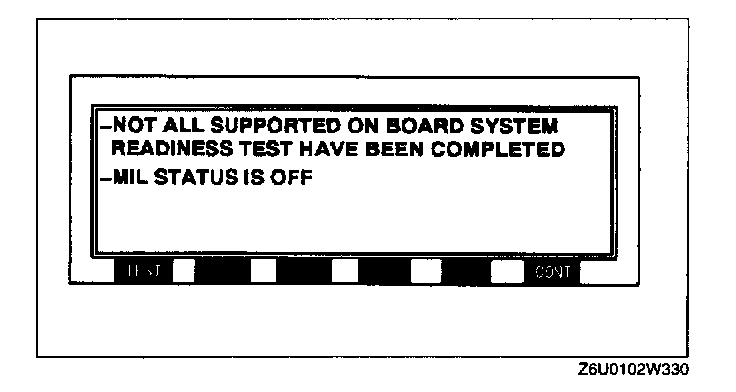

4. Press CONT.

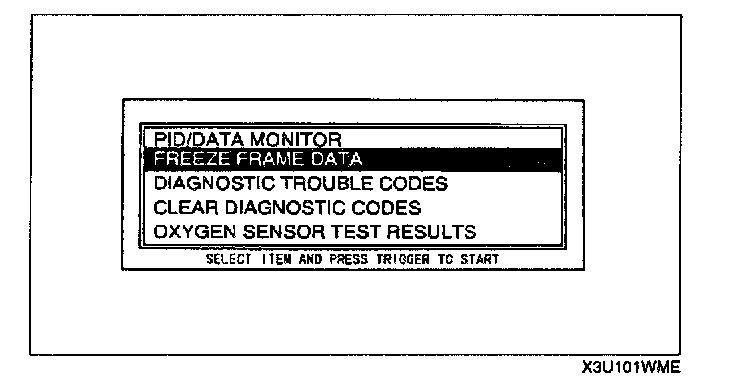

5. Move the cursor to FREEZE FRAME PID DATA.
6. Press the TRIGGER key to enter this selection.

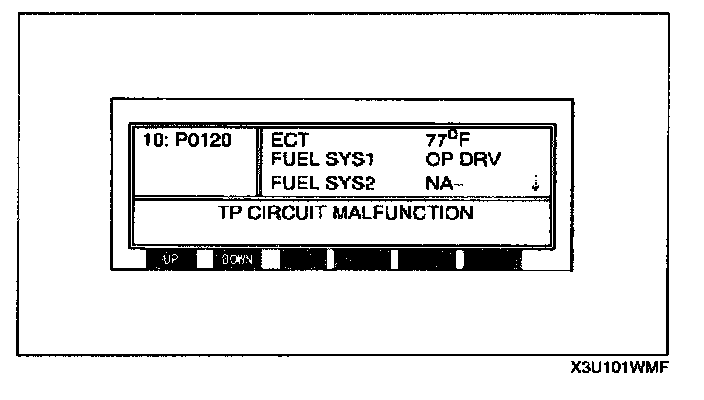

7. Record the FREEZE FRAME PID DATA.

NOTE: It the OBD-II system did not store any DTCs, the NGS tester display will show "NO TRIGGER CODE SET".
