Oscilloscope Patterns and Waveforms

Manufacturer Specific Pattern

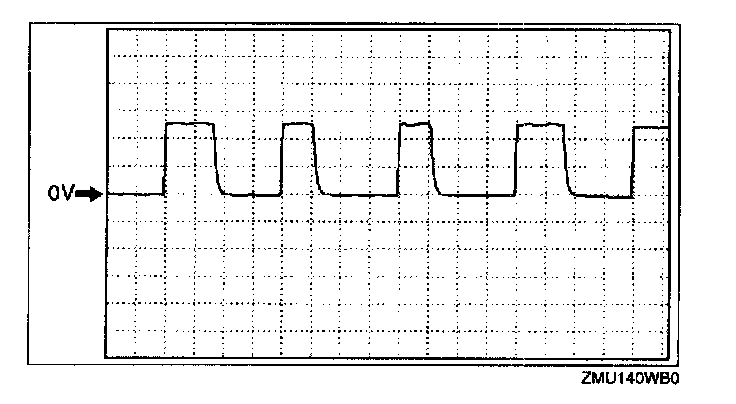

Generator field coil signal




- PCM terminal: 53 (+) <-> 103(-)
- Oscilloscope setting: 0.5 V/DIV (Y), 1 ms/DIV (X), DC range
- Vehicle condition: Idle after warm up
