15. Premain Control Valve Body
PREMAIN CONTROL VALVE BODY DISASSEMBLY / INSPECTION / ASSEMBLYCAUTION: Denting or scratching these precisely machined components will reduce the ability of the transaxle to shift properly. When handling these components or the valve body that contains them, be careful not to drop or hit them.
NOTE: If a valve does not slide out under its own weight, place the valve body open-side down and tap on the valve body lightly with a plastic hammer.

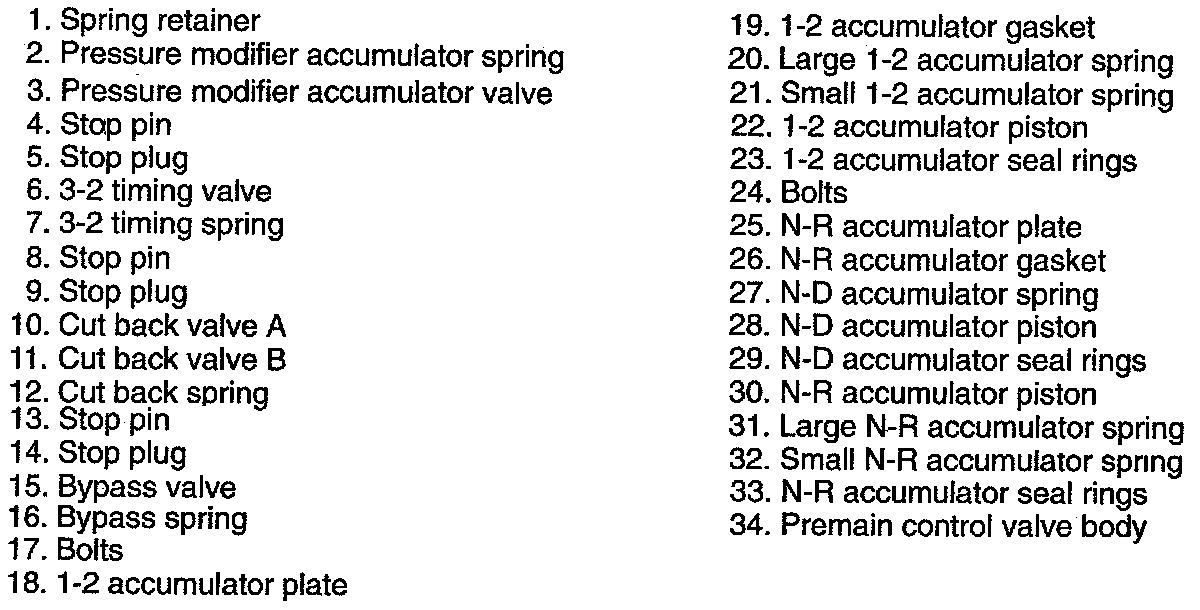

1. Disassemble in the order shown in the figure, noting the proper reassembly direction of the valves and internal parts.
WARNING: Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
2. Clean all parts and bores with compressed air and apply ATF to them immediately before assembly.
3. Assemble in the reverse order of disassembly, referring to Assembly Procedure.
Inspection

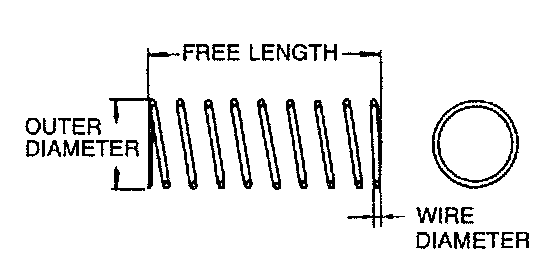

1. Measure the spring free length.

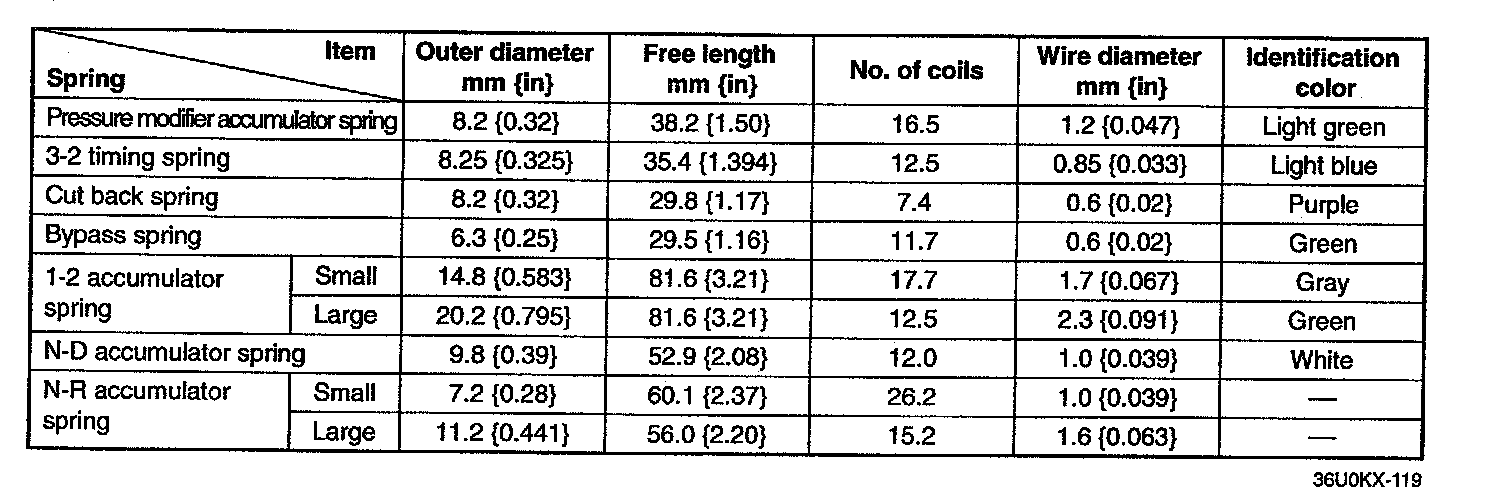

2. If not within specifications, replace the spring.
Assembly Procedure

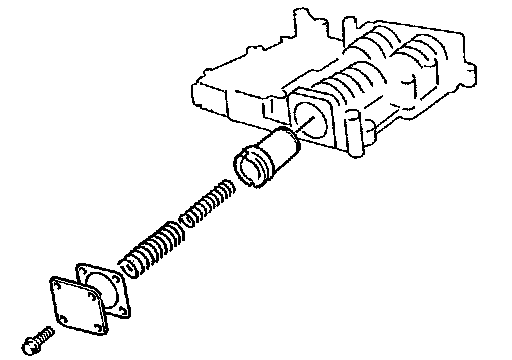

1. Apply ATF to the seal rings, and install them to the N-D accumulator piston.
2. Insert the piston and N-D accumulator spring.
3. Apply ATF to the seal rings, and install them to the N-R accumulator piston.
4. Insert the N-R accumulator springs and piston.
5. Insert the N-R accumulator gasket plate.

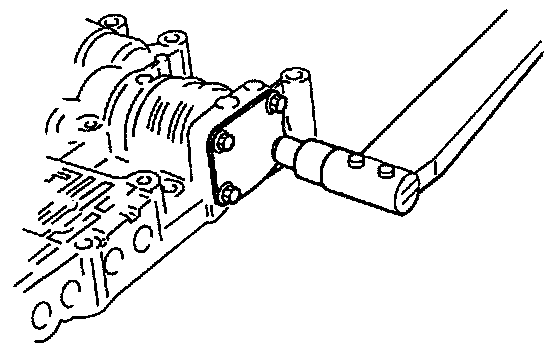

6. Tighten the plate bolt.
Tightening torque: 6.5 - 7.8 Nm (66 - 80 kgf-cm, 58 - 69 inch lbs.)

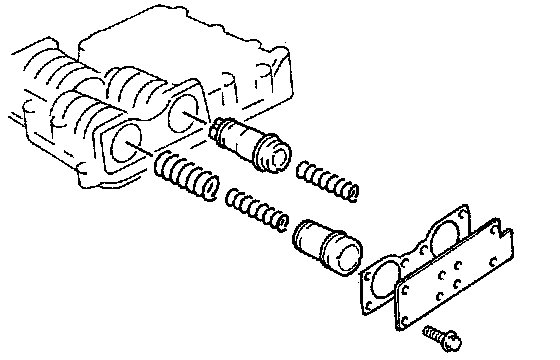

7. Apply ATF to the seal rings, and install them onto the 1-2 accumulator piston.
8. Install the piston and 1-2 accumulator springs.
9. Install the 1-2 accumulator gasket and plate.

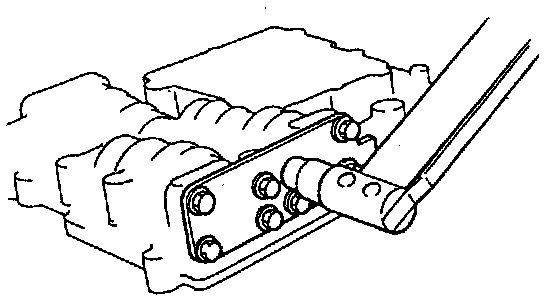

10. Tighten the plate bolt.
Tightening torque: 6.5 - 7.8 Nm (66 - 80 kgf-cm, 58 - 69 inch lbs.)

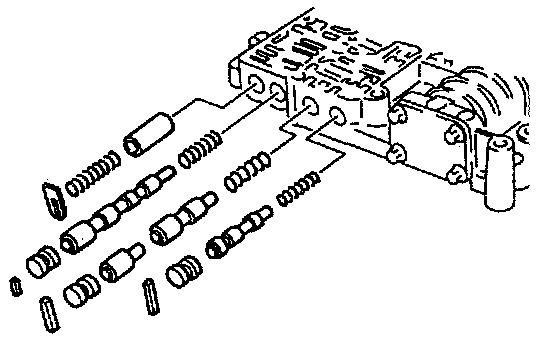

11. Install the bypass valve spring, bypass valve, stop plug, and stop pin.
12. Install the cut back spring, cut back valve B, cut back valve A, stop plug, and stop pin.
13. Install the 3-2 timing spring, 3-2 timing valve,, stop plug, and stop pin.
14. Install the pressure modifier accumulator valve, pressure modifier accumulator spring, and spring retainer.
