Component Locations

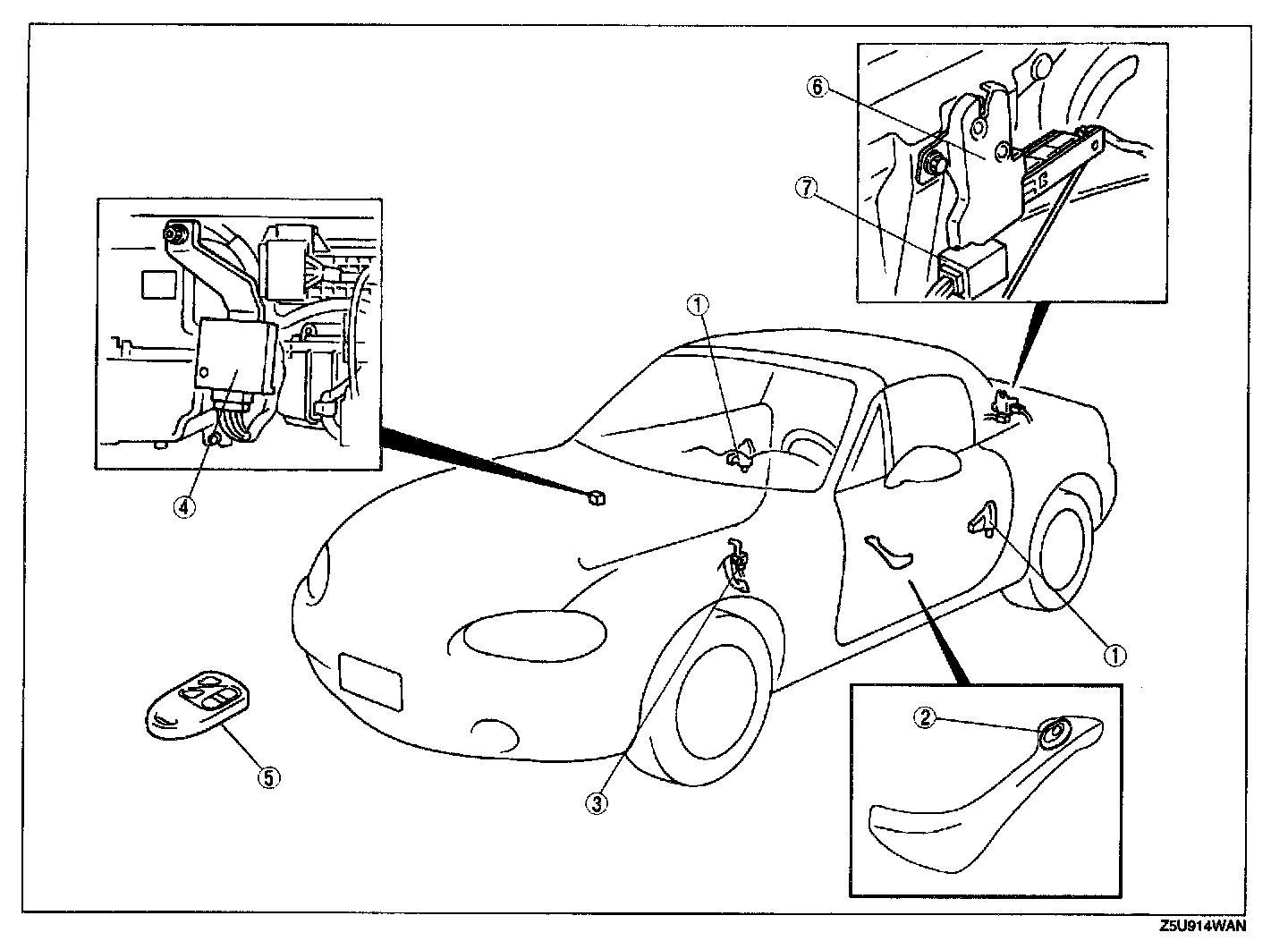

Power Door Lock System Location Index:

1. Door lock actuator
2. Door lock switch
3. Door lock control module
4. Keyless control module
5. Transmitter battery
6. Trunk lid lock actuator
7. Trunk lid opener relay
