Cruise Control Servo Cable: Service and Repair

ACTUATOR CABLE REMOVAL

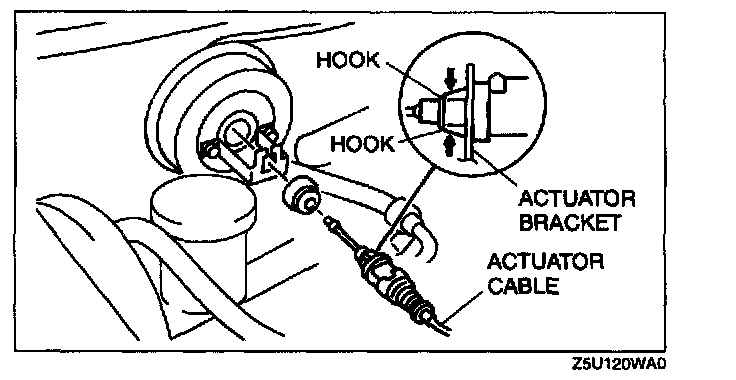

1. Loosen the nut, and remove the actuator cable.

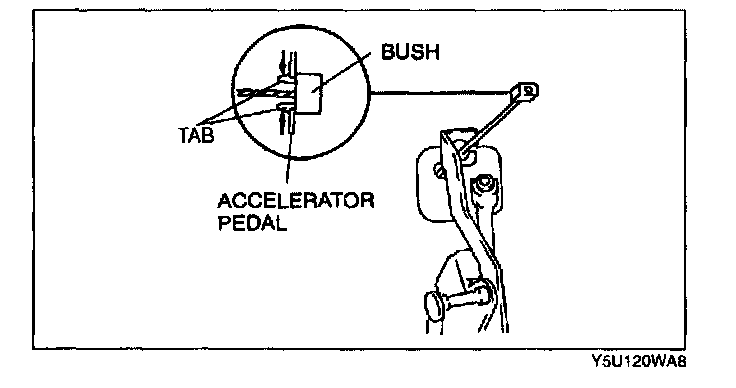

2. Press the tabs of the bush, and remove it from the accelerator pedal.

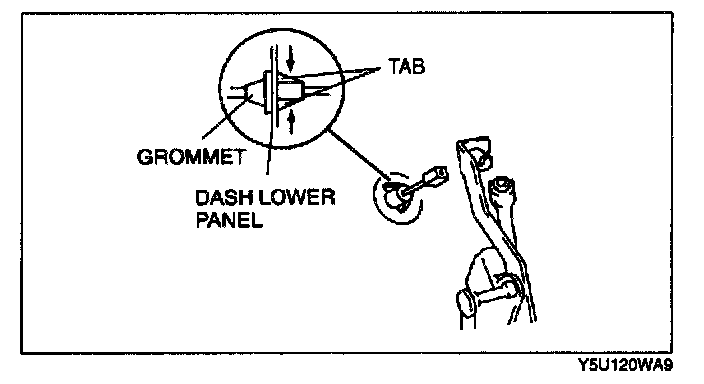

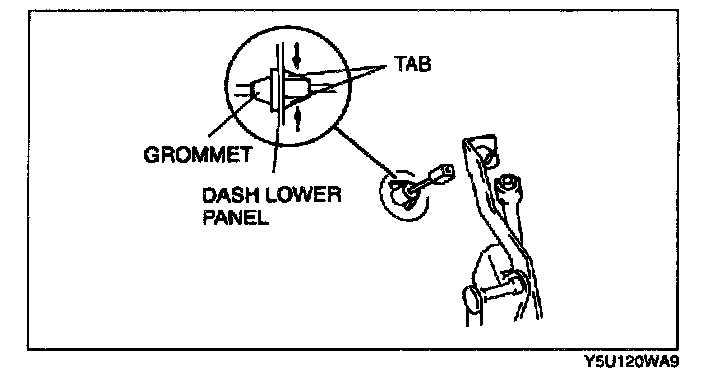

3. Press the tabs of the grommet, and remove it from the dash lower panel.
4. Push the actuator cable through the dash lower panel to remove it.

ACTUATOR CABLE INSTALLATION




1. Install the grommet to the dash lower panel.

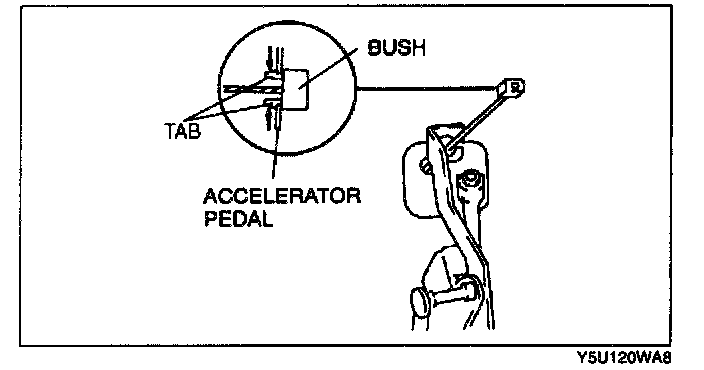

2. Install the actuator cable to the accelerator pedal.

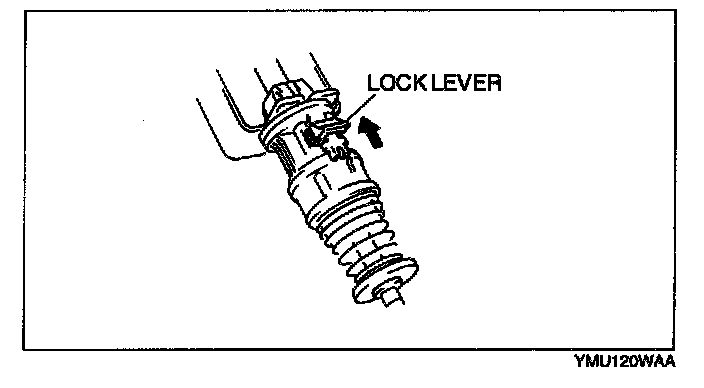

3. Slide the lock lever in the direction shown by the arrow to unlock the adjuster.

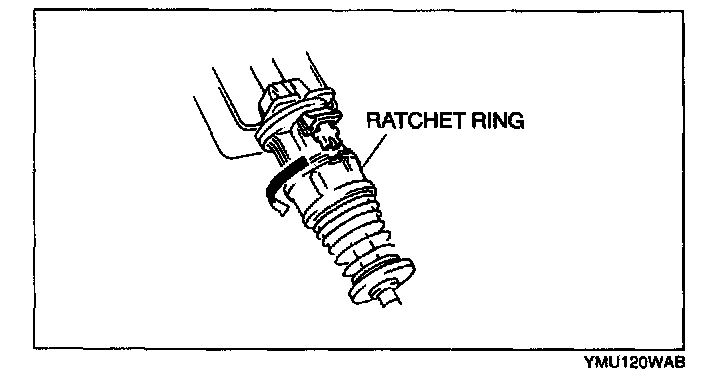

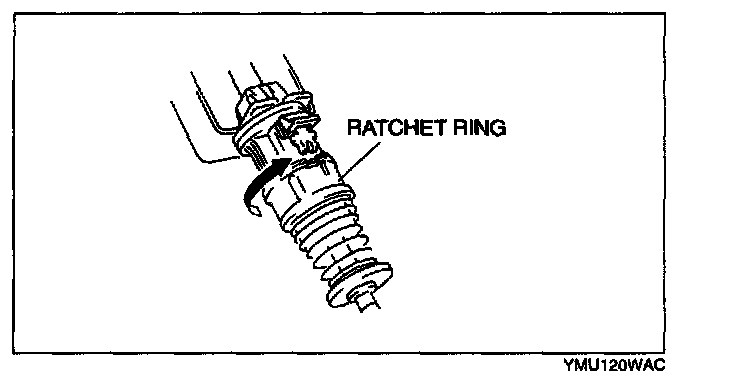

4. Turn the ratchet ring to release lock in the direction shown by the arrow.

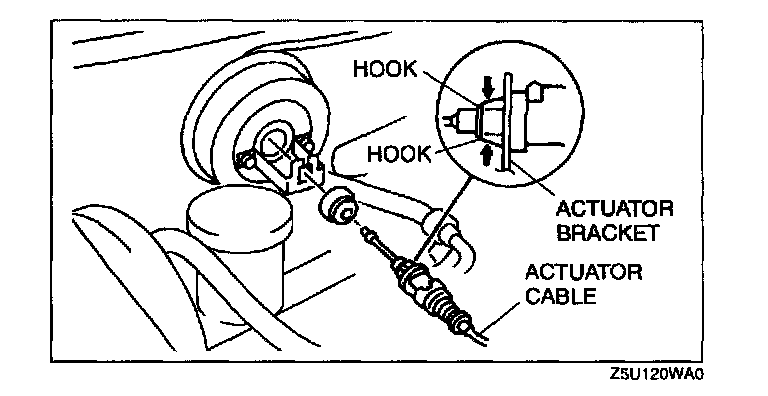

5. Insert the grommet into the actuator bracket.

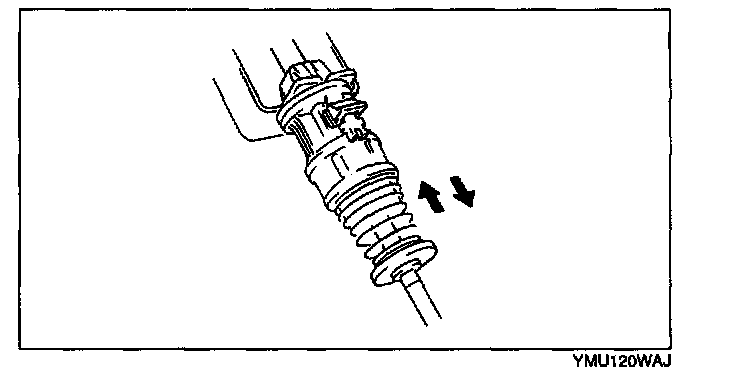

6. To adjust the free play, push or pull the actuator cable directly behind the spring two times.




7. Turn the ratchet ring in the direction shown by the arrow to lock it.

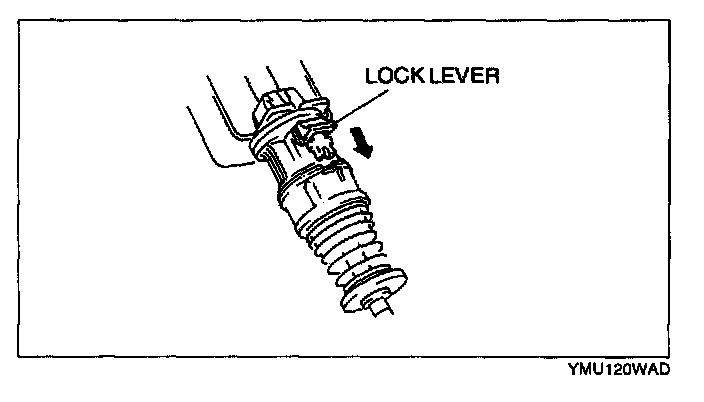

8. Slide the lock lever in the direction shown by the arrow to lock the adjuster.
