Component Locations

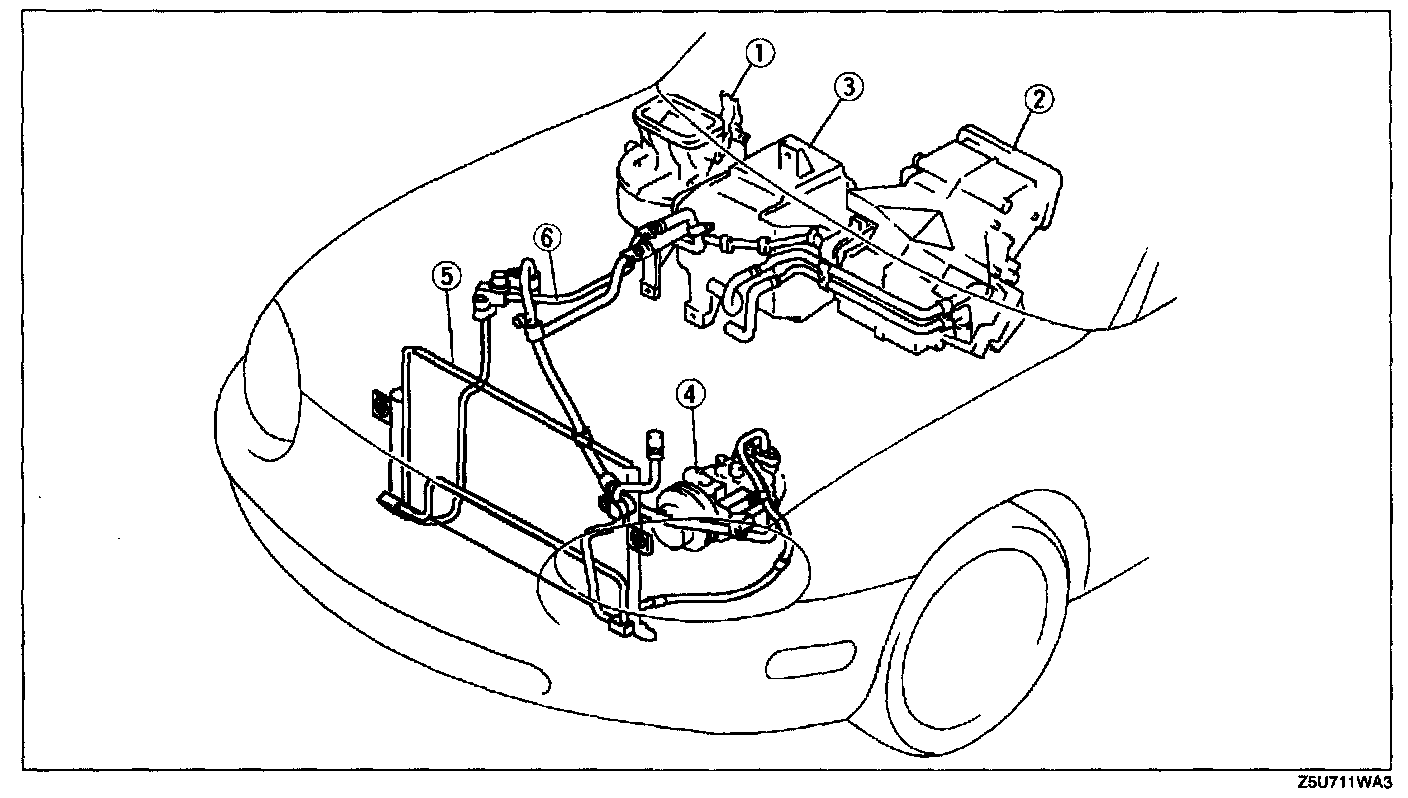

Basic System:
1.
Blower unit
2.
Heater unit
3.
Cooling unit
4.
A/C compressor
5.
Condenser
6.
Refrigerant lines

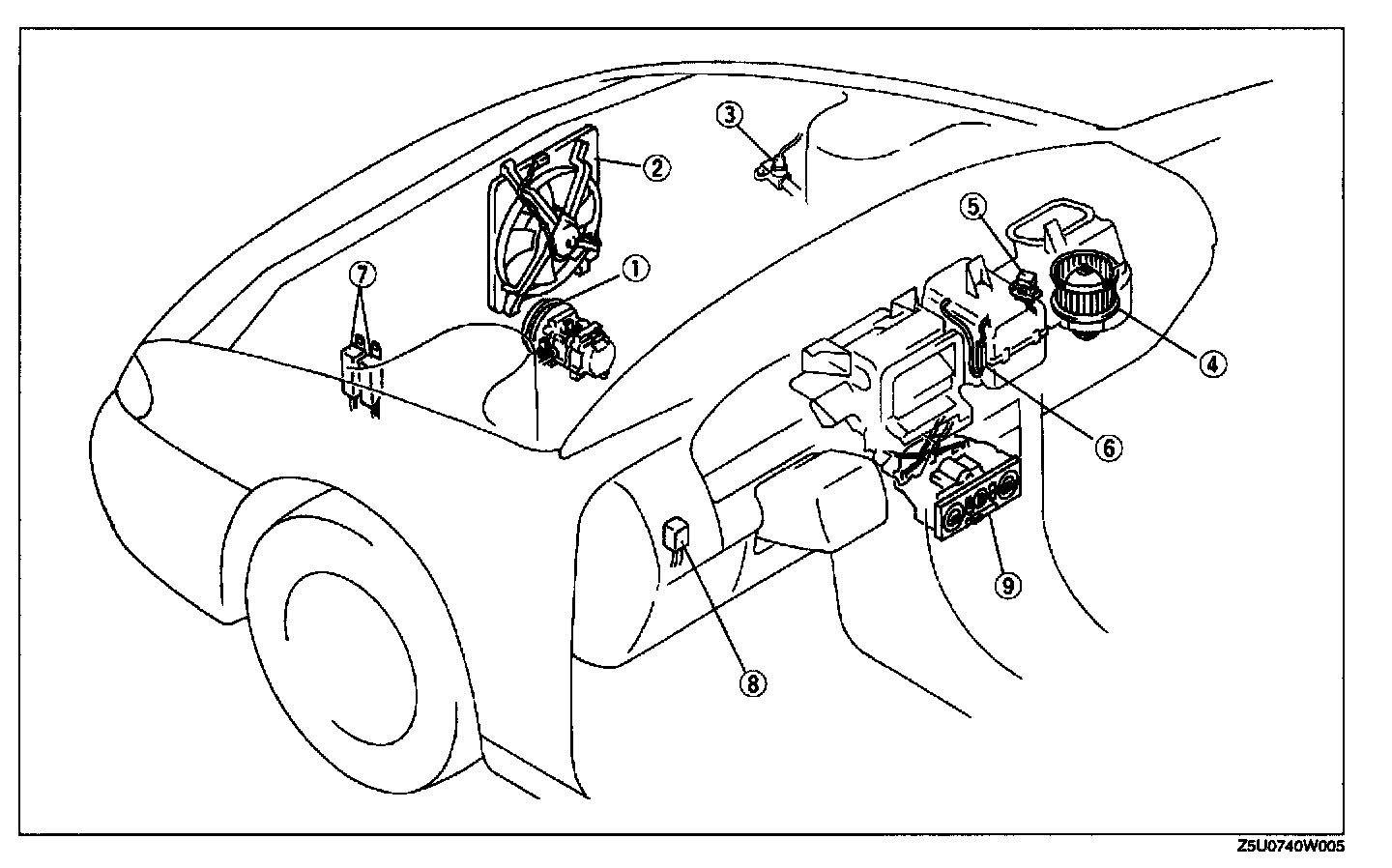

Control System:
1.
Magnetic clutch
2.
Condenser fan
3.
Refrigerant pressure switch
4.
Blower motor
5.
Resistor
6.
Thermoswitch
7.
A/C relay and condenser fan relay
8.
Blower relay
9.
Climate control unit
