Rear Wheel Alignment

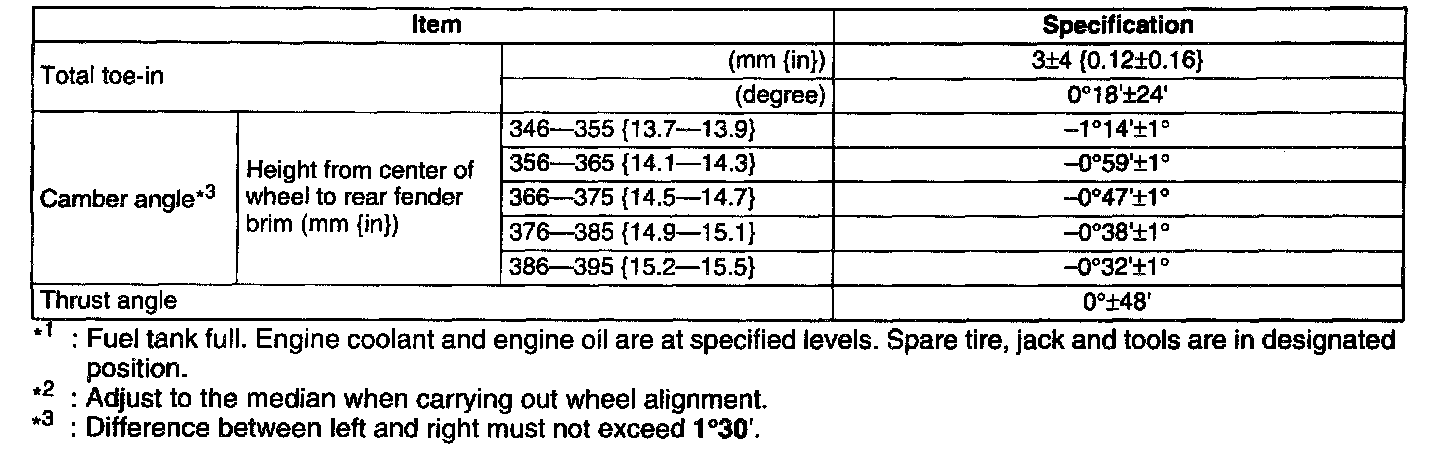

Total Toe-in Adjustment

Caution:
- Adjust the toe-in before adjusting the camber.

1. Loosen the front and/or rear cam nuts.

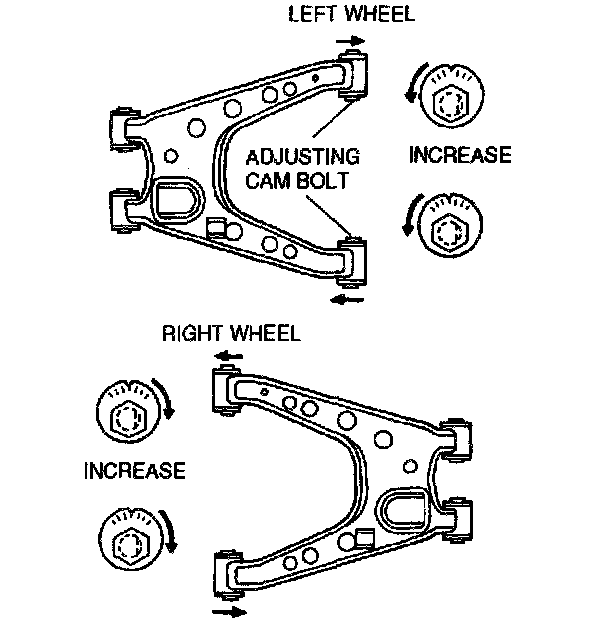

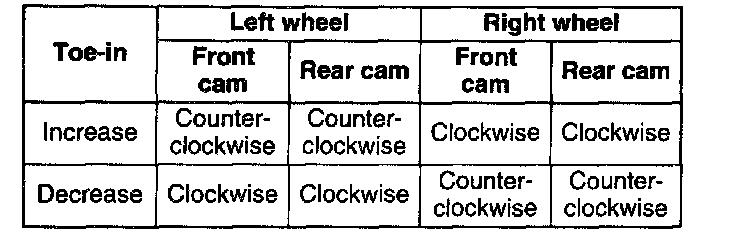

2. Turn the front and/or rear adjusting cam bolts equally to provide the correct toe-in.

Note: Turning the front cam one graduation changes the toe-in about 2.3 mm (0.1 inch) and the camber about 13'. Turning the rear cam one graduation changes the toe-in about 2.3 mm (0.1 inch) and the camber about 8'.

3. Adjust the camber.

Camber Adjustment

Caution:
- Adjust the camber after adjusting the toe-in.

1. Loosen the front and rear cam nuts.

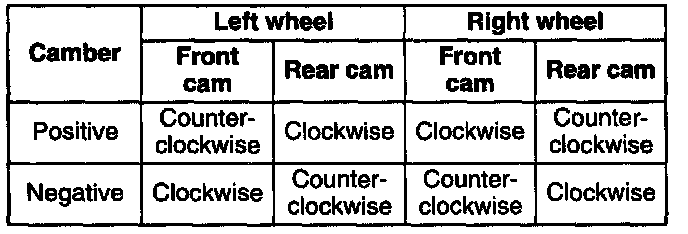

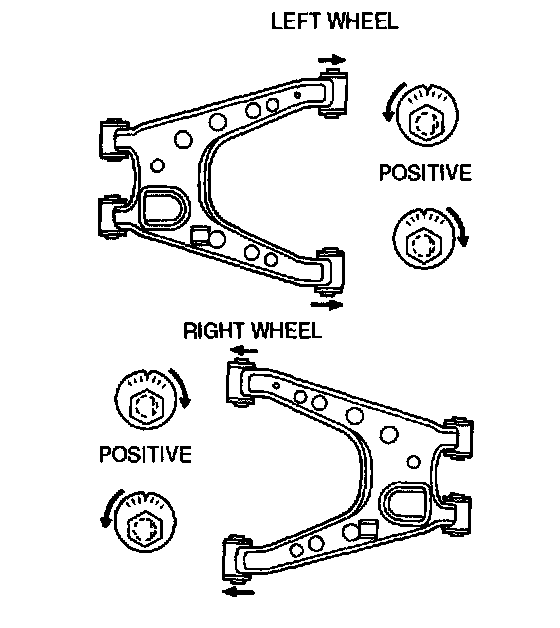

2. Turn the front and rear adjusting cam bolts the same amount in the opposite direction equally to provide the correct camber angle.

Note:
- Turning the front cam one graduation changes the camber about 13'and the toe-in about 2.3 mm (0.1 Inch). Turning the rear cam one graduation changes the camber about 8' and the toe-in about 2.3 mm (0.1 Inch). If the cam cannot be turned far enough to make the adjustment, begin adjustment of the toe-in again using the other cam.

3. Tighten the nuts.
Tightening torque 73 - 95 Nm (7.4 - 9.7 kgf.m, 54 - 70 ft. lbs.)
