Ignition Coil Pack: Service and Repair
IGNITION COIL REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.

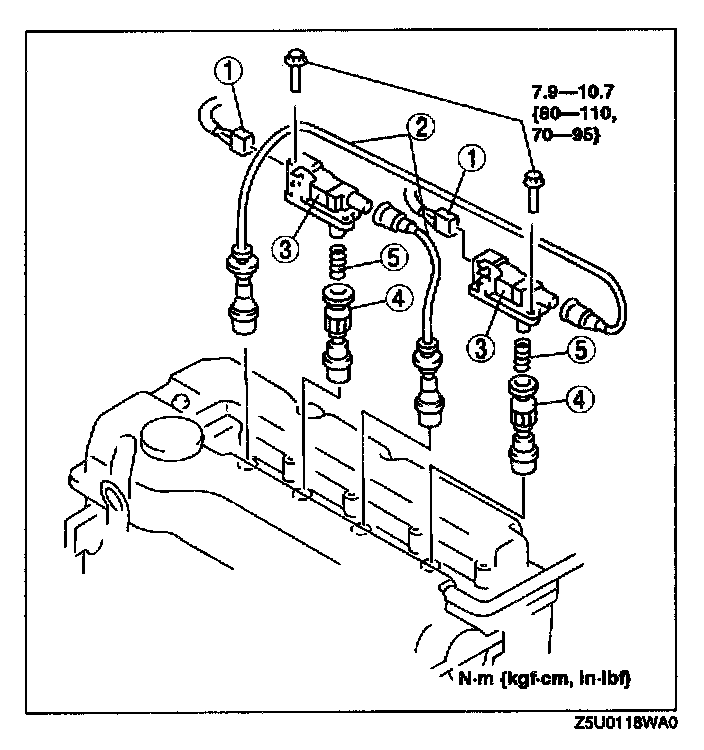

Remove in the order indicated below.
1.
Connector
2.
High-tension lead
3.
Ignition coil 4.
Plug cap
5.
Spring
3.
Install in the reverse order of removal.
