Air Bag Control Module: Locations

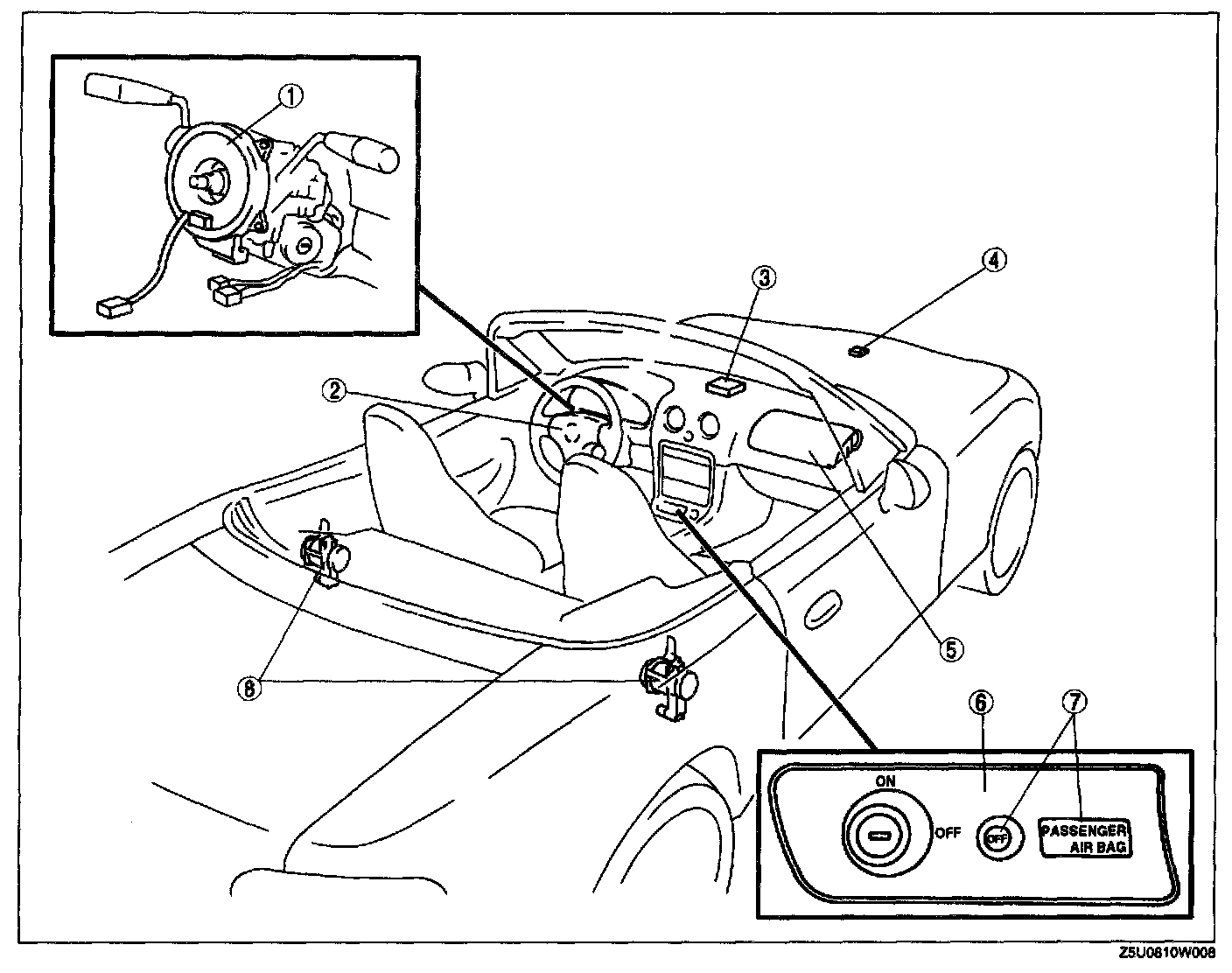

Air Bag System Location Index:
AIR BAG SYSTEM LOCATION INDEX 1.
Clock Spring
2.
Driver-side air bag module
3.
SAS control module
4.
Crush zone sensor
5.
Passenger-side air bag module
6.
Passenger air bag deactivation (PAD) switch
7.
Passenger air bag deactivation (PAD) switch warning light and Passenger air bag deactivation (PAD) switch illumination bulb
8.
Pre-tensioner seat belt
