Removal and Installation

SAS CONTROL MODULE REMOVAL/INSTALLATION

WARNING: Handling the SAS control module improperly can accidentally deploy the air bag modules and pre-tensioner seat belts, which may seriously injure you. Read AIR BAG SYSTEM SERVICE PRECAUTIONS before handling the SAS control module.

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the dashboard.

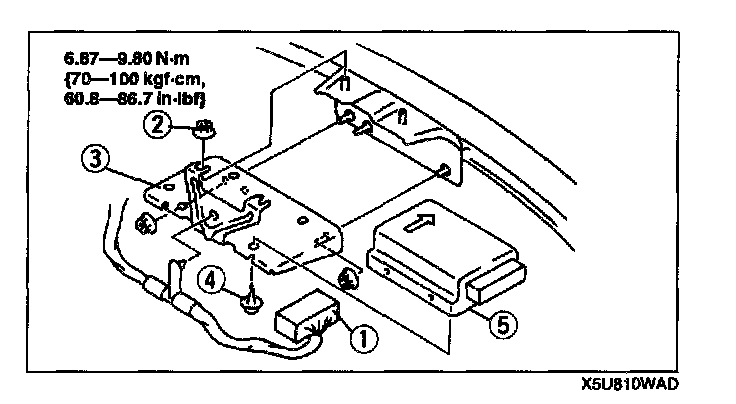

4. Remove in the order indicated in the table.
1. Connector
2. Nut
3. Bracket
4. Screw
5. SAS control module

5. Install in the reverse order of removal.
6. Turn the ignition switch to ON position.
7. Verify that the air bag system warning light illuminates for approximately 6 seconds and then goes off.
- If the air bag system warning light remains on, off, or repeats flashing after servicing, there are malfunctions in the system. Carry out the inspection again.




Nut Installation Note

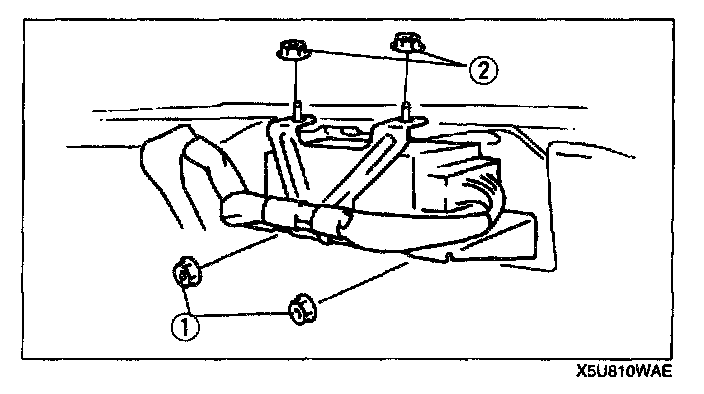

1. Tighten the nuts in the order shown in the figure.
