Battery Removal/Installation
Battery Removal/Installation

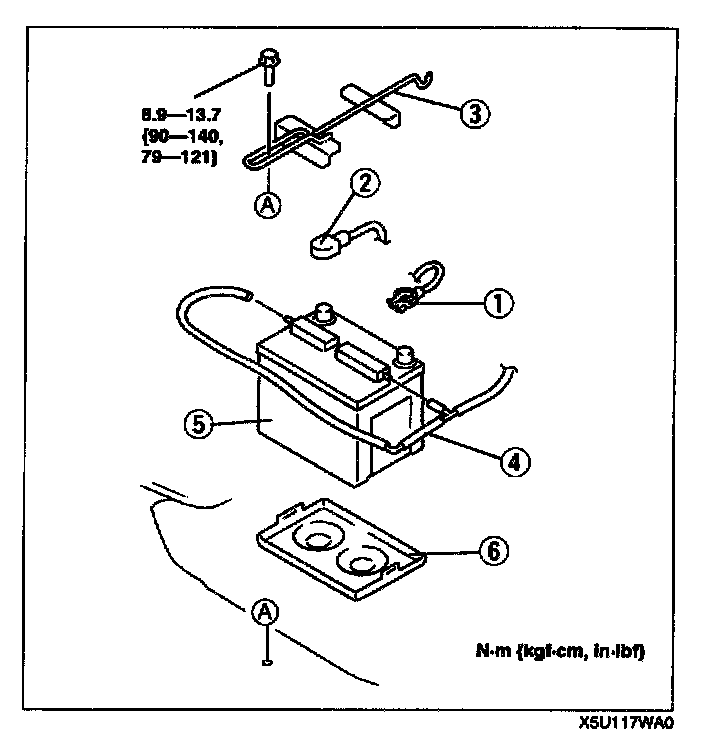

1.
Remove in the order indicated below.
1.
Negative
battery cable
2.
Positive battery cable
3.
Battery clamp
4.
Battery vent hose
5.
Battery
6.
Battery tray
2.
Install in the reverse order of removal.
