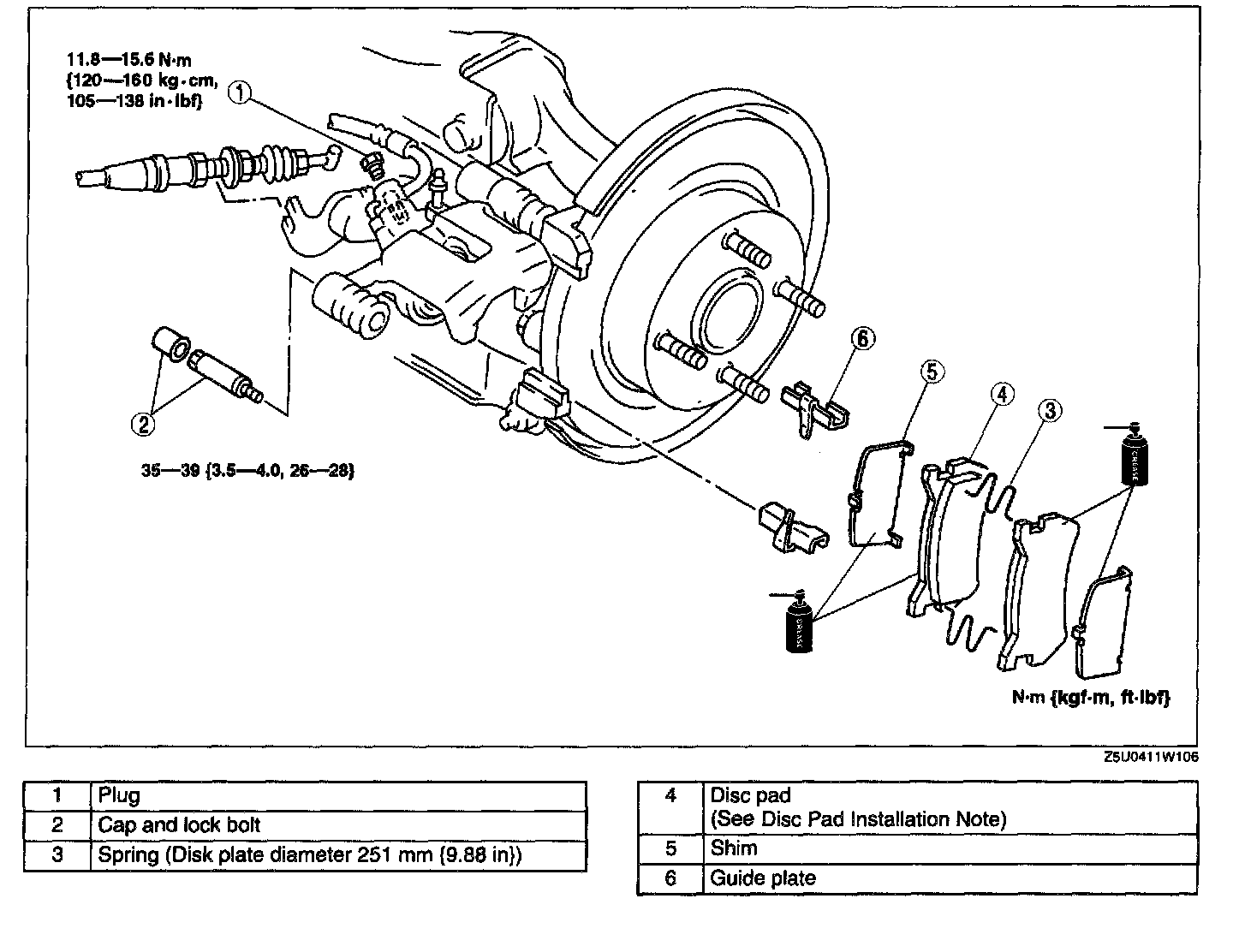

DISC PAD (REAR) REPLACEMENT
1.
Remove in the order indicated in the table.
2.
Install in the reverse order of removal.
