Condenser Fan
>>
Locations
>>
Connector Locations
Connector Locations

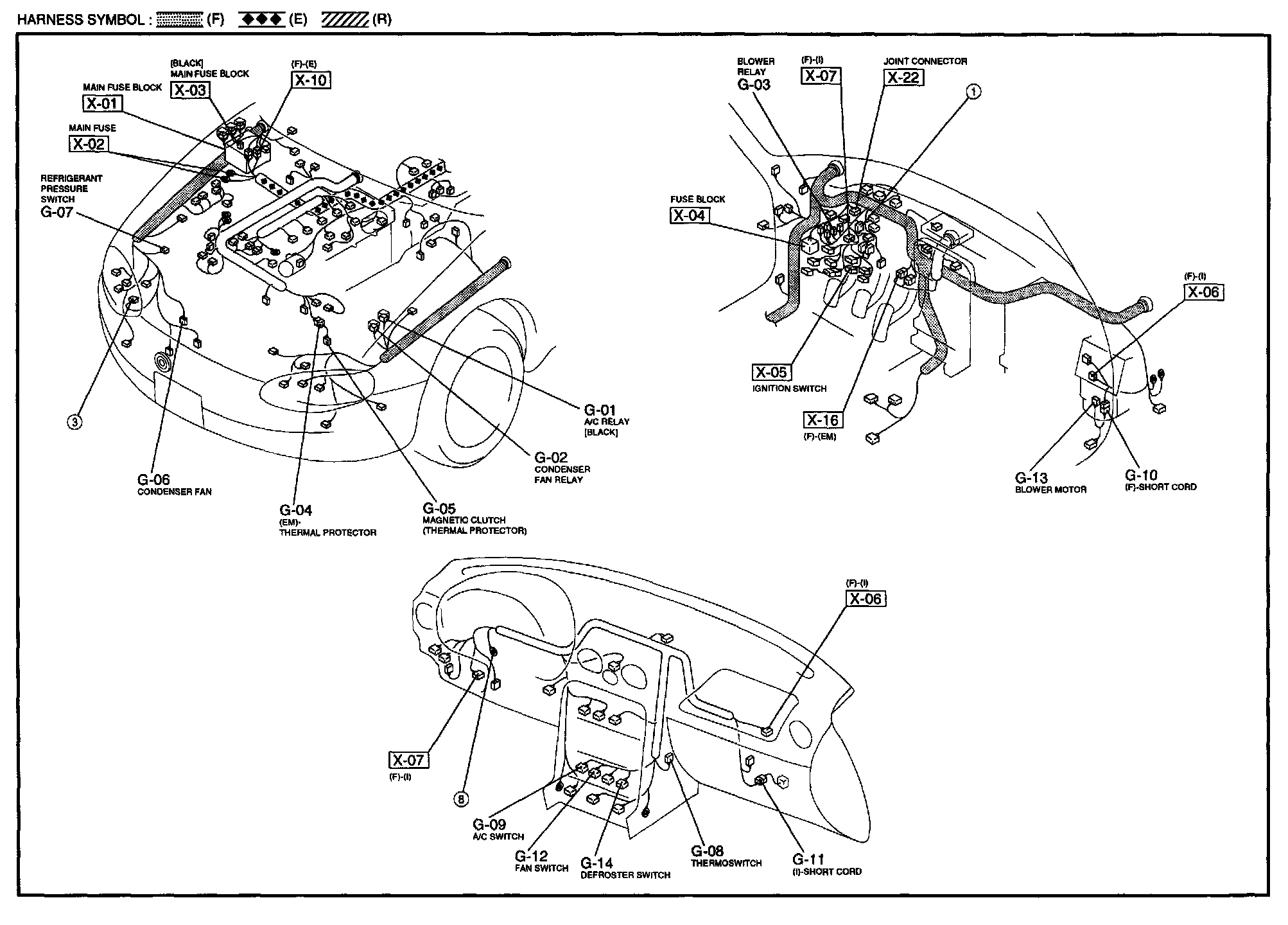

G - Condenser Fan System / Heater And Air Conditioner Harness/Connector Symbols:
