Power Door Lock Control Module: Testing and Inspection

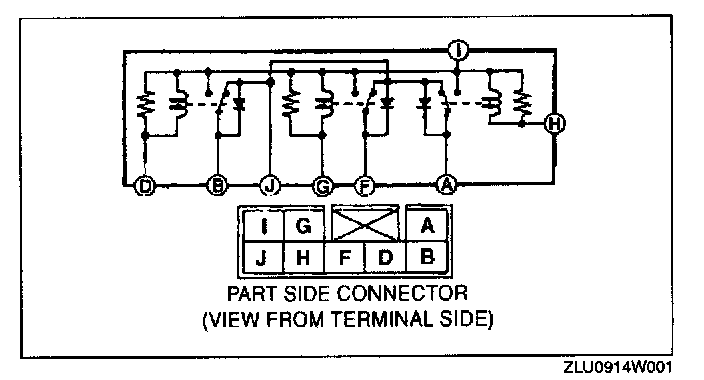

1. Disconnect the door lock control module connector.

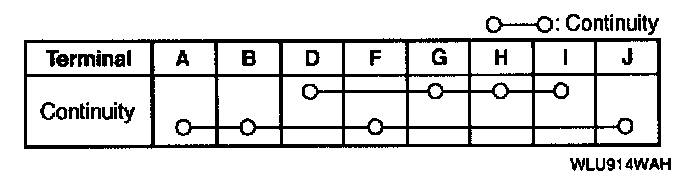

2. Inspect for continuity between the terminals of the door lock control module connector.
3. Reconnect the door lock control module connector.

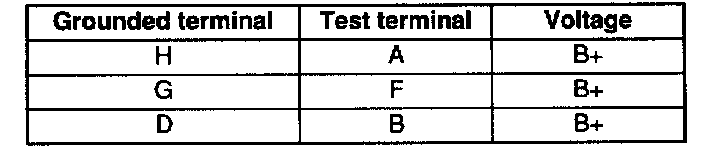

4. Measure the voltage at the terminals of the door lock control module connector with the following terminals connected to GND.
- If not as specified, replace the door lock control module.
