Oscilloscope Patterns and Waveforms

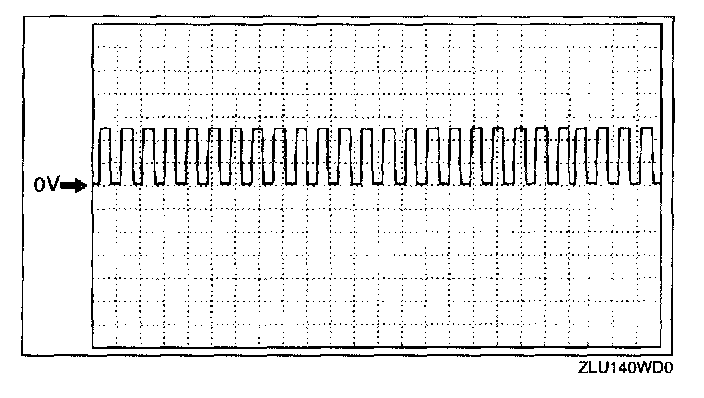

SGC Signal
- PCM terminal: 4F(+)-4D(-)
- Oscilloscope setting: 2 V/DIV (Y), 200 ms/DIV (X), DC range
- Vehicle condition: idle after warm up
