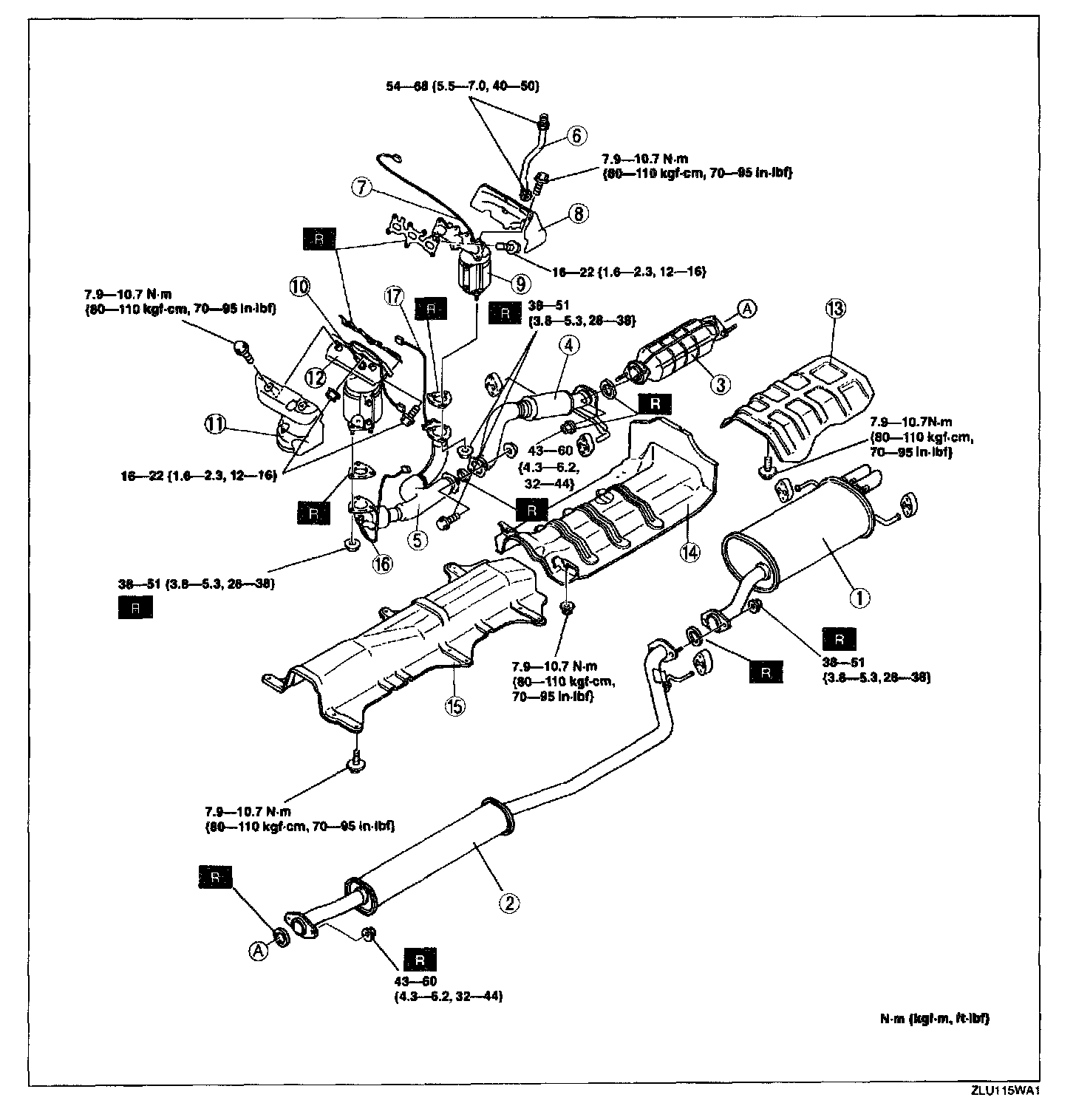

Oxygen Sensor: Specifications

1. Main silencer
2. Presilencer
3. TWC
4. Front pipe No.2
5. Front pipe No.1
6. EGR pipe
7. HO2S (front RH)
8. Insulator (RH)
9. WU-TWC(RH)
10. HO2S (front LH)
11. Insulator (LH)
12. WU-TWC(LH)
13. Insulator
14. Insulator
15. Insulator
16. HO2S(rear RH)
17. HO2S(rear LH)
