Vehicle Speed Sensor: Testing and Inspection

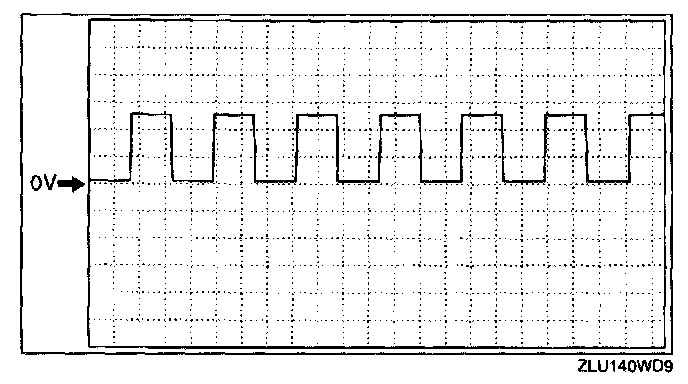

Vehicle Speed Signal
- PCM terminal: 1C(+)-4AN(-)
- Oscilloscope setting: 2V/DIV (Y), 20 ms/DIV (X), DC range mph]
- Vehicle condition: Driving speed 20km/h [12.4 mph]
