Ignition Cable: Testing and Inspection
HIGH-TENSION LEAD INSPECTION 1.

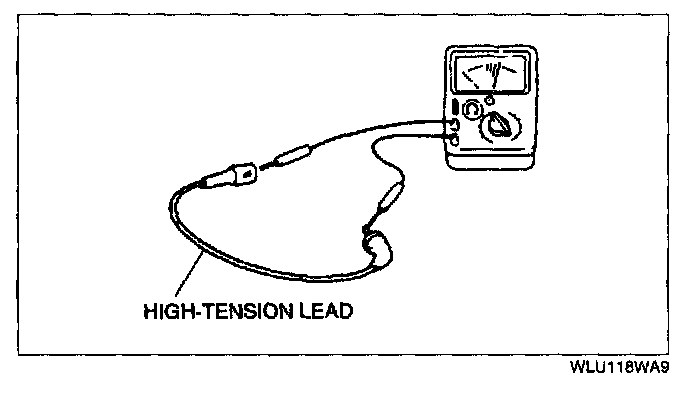

Measure the resistance of the high-tension leads. If not as specified, replace the high-tension lead.
Specification:
No.1 lead:
13 - 29 kOhms No.2 lead:
8 - 17 kOhms No.3 lead:
13 - 29 kOhms No.4 lead:
6 - 12 kOhms No.5 lead:
14 - 31 kOhms No.6 lead:
5 - 10 kOhms
