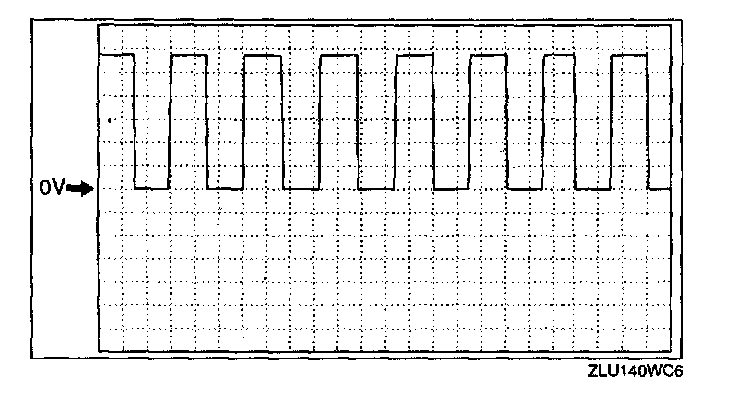

Engine Speed Signal




Engine Speed Signal
- PCM terminal: 1AJ(+)AD(-)
- Oscilloscope setting: 2 V/DIV (Y), 10 ms/DIV (X), DC range
- Vehicle condition: idle after warm up
