Starter Motor: Service and Repair

STARTER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

KL:

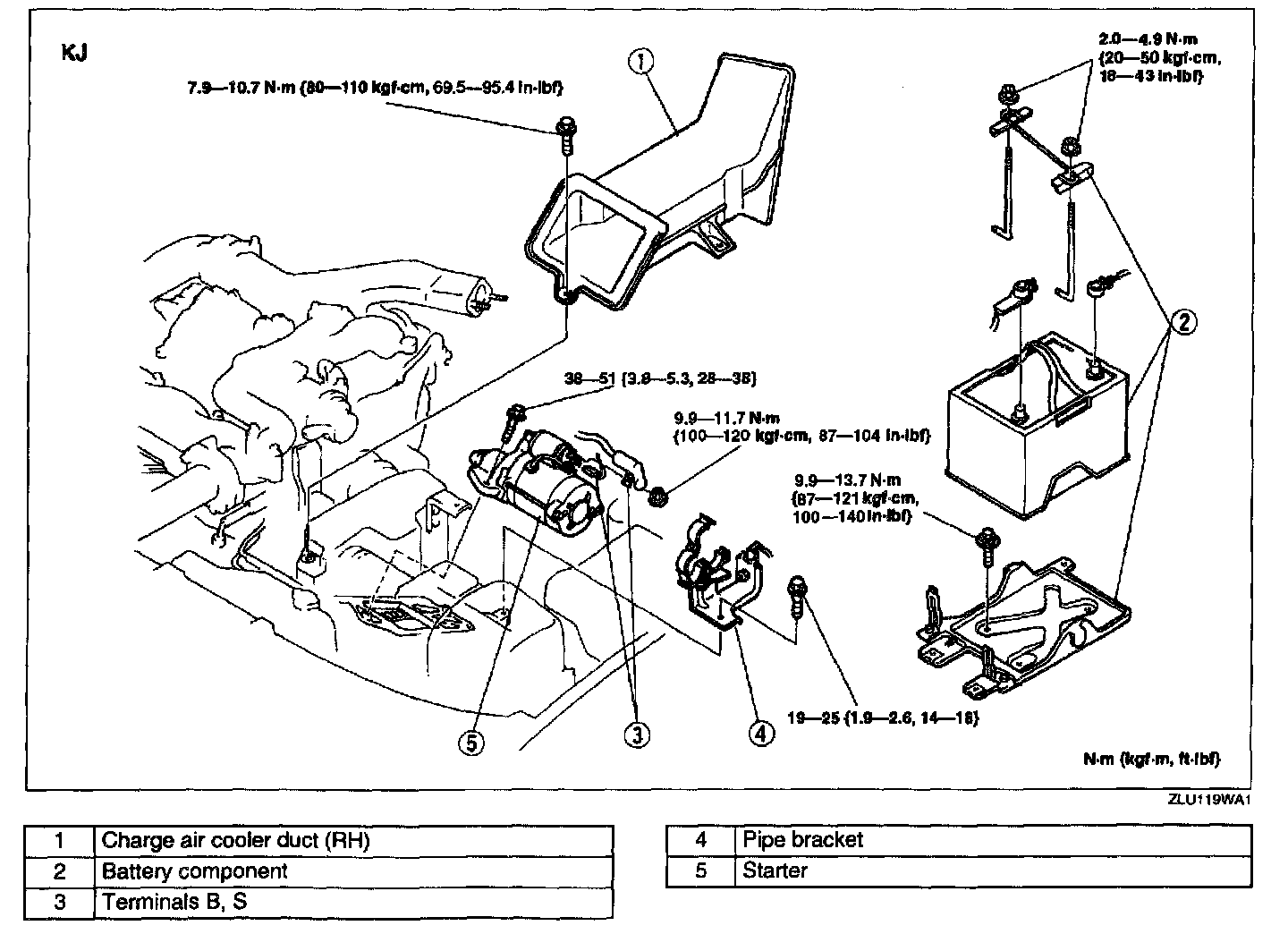

KJ:

2. Remove the charge air cooler. (KJ)
3. remove in the order indicated in the table.
4. Install in the reverse order of removal.
