Mirrors: Testing and Inspection

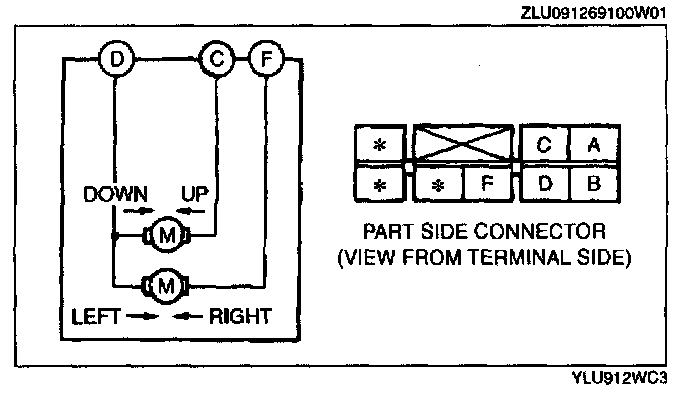

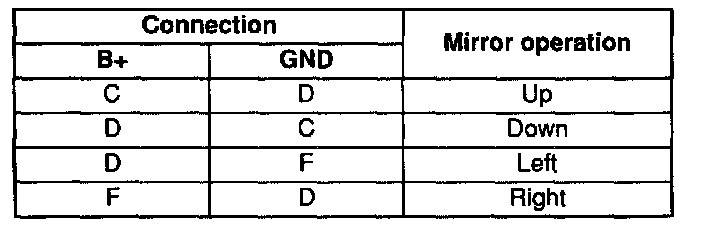

1. Apply battery positive voltage to the power outside mirror terminals and inspect the operation of the power outside mirror.
- If not as specified, replace the power outside mirror.

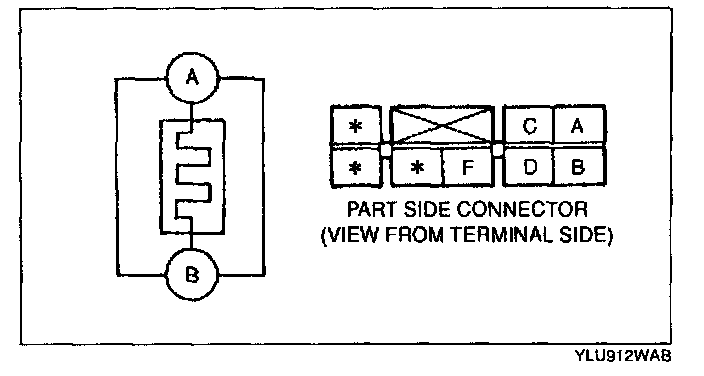

2. Inspect for continuity between the power outside mirror terminals A and B using an ohmmeter.
- If not as specified, replace the power outside mirror.
