Engine Stand Mounting
MOUNTINGProcedure
When using Special Service Tool (SST) (49 E010 1A0)
1. Remove the heated oxygen sensor (Front RH).
2. Remove the EGR pipe.

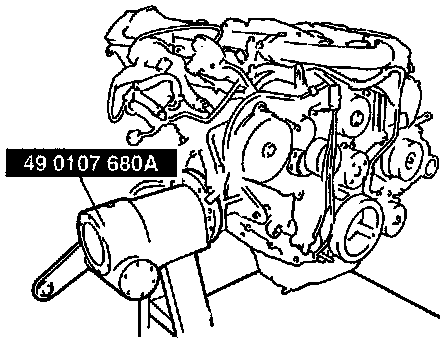

3. Remove the insulator (RH).
4. Remove the warm up three way catalytic converter (RH) and gasket.

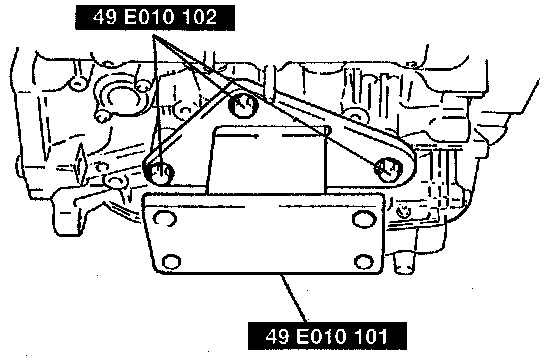

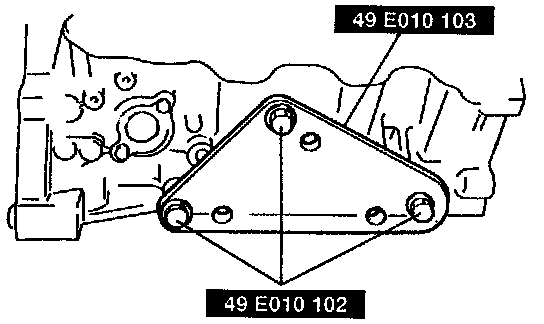

5. Install the SST at the positions as shown.
6. Mount the engine on the SST.

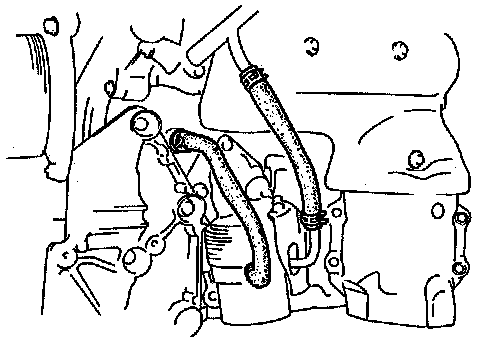

7. After installing the engine to the SST (engine stand), disconnect the oil cooler hoses as shown to drain the coolant.

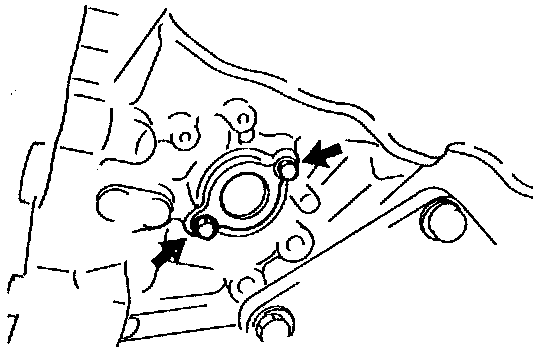

8. Remove the blind cover and drain the coolant.
9. After draining the coolant, install a new O-ring and install the blind cover.
Tightening torque:
19 - 25 Nm (14 - 18 ft. lbs.)
When using SST (49 E010 1A1 and 49 L010 1A0)
1. Remove the heated oxygen sensor (Front RH).
2. Remove the EGR pipe.
3. Remove the insulator (RH).
4. Remove the warm up three way catalytic converter (RH) and gasket (RH).

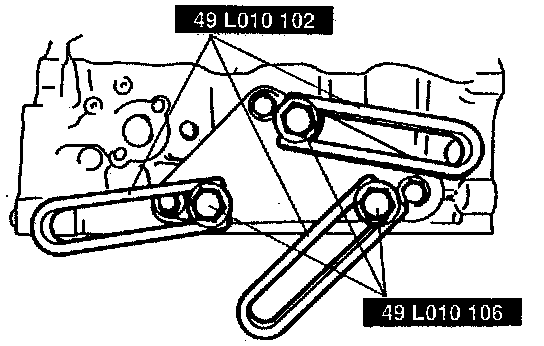

5. Install the SST at the positions as shown.
6. Install the SST (arms) to the holes as shown, and hand tighten the SST (bolts).

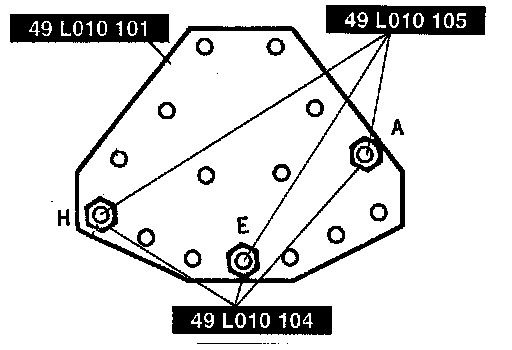

7. Assemble the SST (bolts, nuts and plate) as shown.
8. Install the SST assembled in step 7 to the SST installed in step 6.

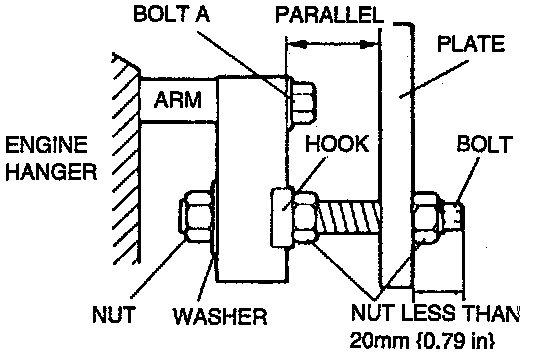

9. Adjust the SST (bolts) so that less than 20 mm (0.79 inch) of thread is exposed.
10. Make the SST (plate and arms) parallel by adjusting the length of the bolts.
11. Tighten the SST (bolts and nuts) to affix the SST firmly.
12. Mount the engine on the SST (engine stand).
13. After installing the engine to the SST (engine stand), disconnect the oil cooler hoses to drain the coolant.
