Component Tests and General Diagnostics

Resistance

1. Disconnect the CKP sensor connector.

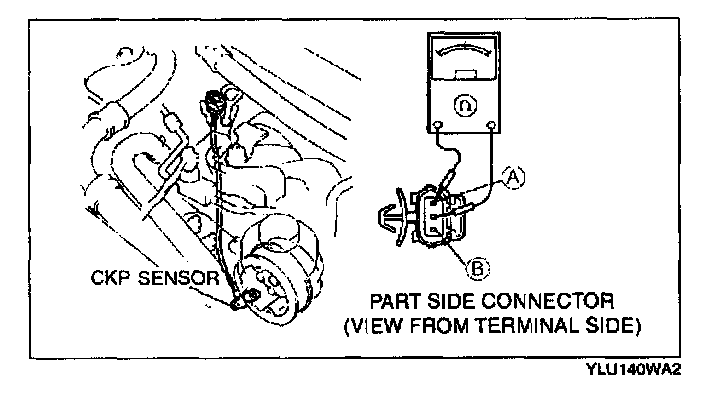

2. Measure the resistance between terminals A and B using an ohmmeter.
- If not as specified, replace the CKP sensor.

Specification: 950 - 1,25O (1,100 ± 150) Ohms

Air Gap




1. Verify that the CKP sensor is installed correctly and securely.

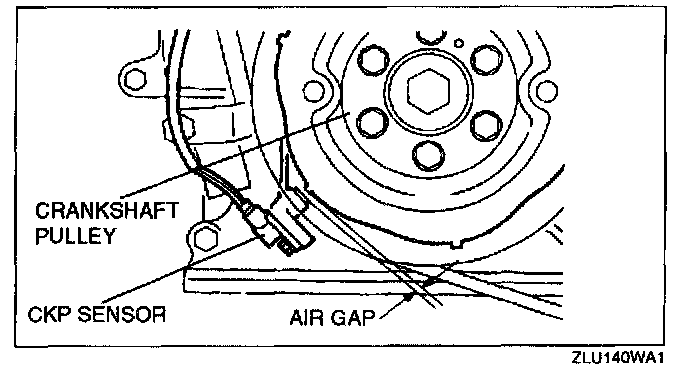

2. Measure the air gap between the crankshaft pulley and the CKP sensor using a feeler gauge.
- If not as specified, replace the crankshaft pulley (See TIMING BELT REMOVAL/INSTALLATION.) or the CKP sensor.

Specification: 0.5 - 1.5 mm {0.020 - 0.05 in}
