Keyless Entry Module: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the rear seat.

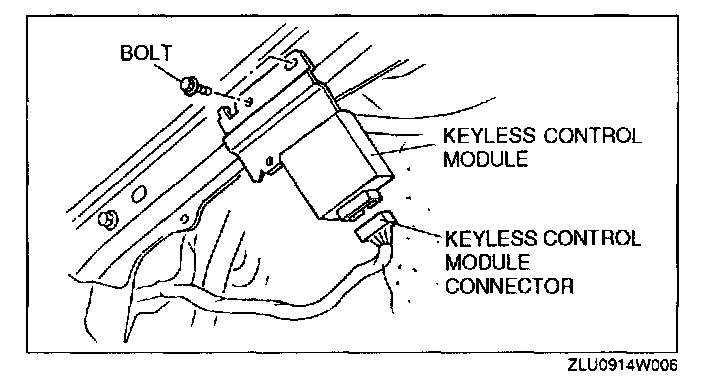

3. Disconnect the keyless control module connector.
4. Remove the bolts, then and remove the bracket with keyless control module.

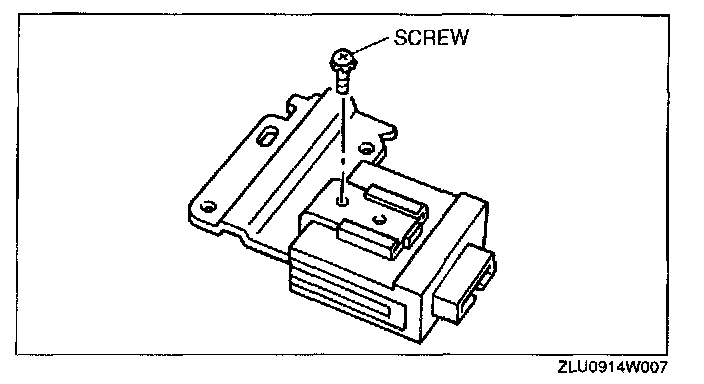

5. Remove the screw.

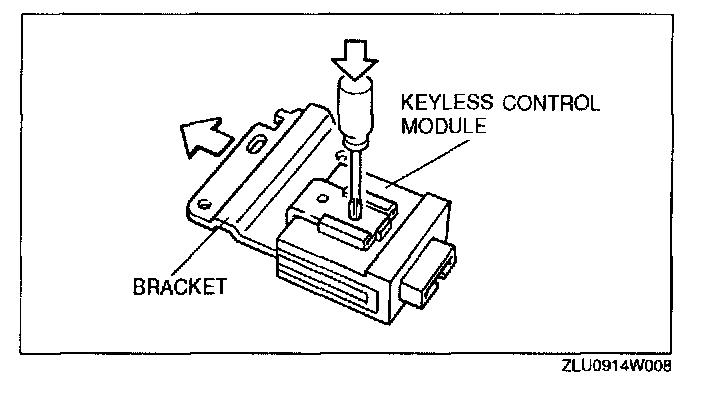

6. Push the stopper down using a small screwdriver as shown.
7. Install in the reverse order of removal.
