Front Fender: Service and Repair
FRONT FENDER PANEL REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the front combination light.
3.

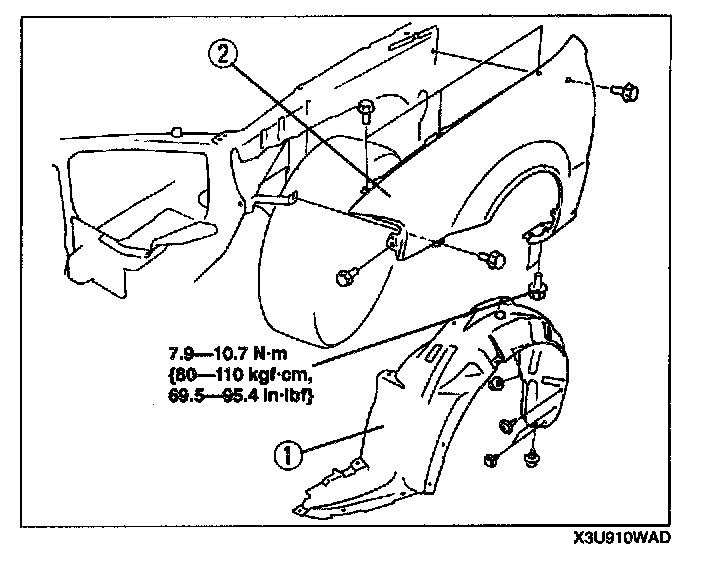

Remove in the order indicated below.
1.
Mud guard
2.
Front
fender panel
4.
Install in the reverse order of removal.
5.
Adjust the headlight aiming.
