Lighting and Horns: Locations

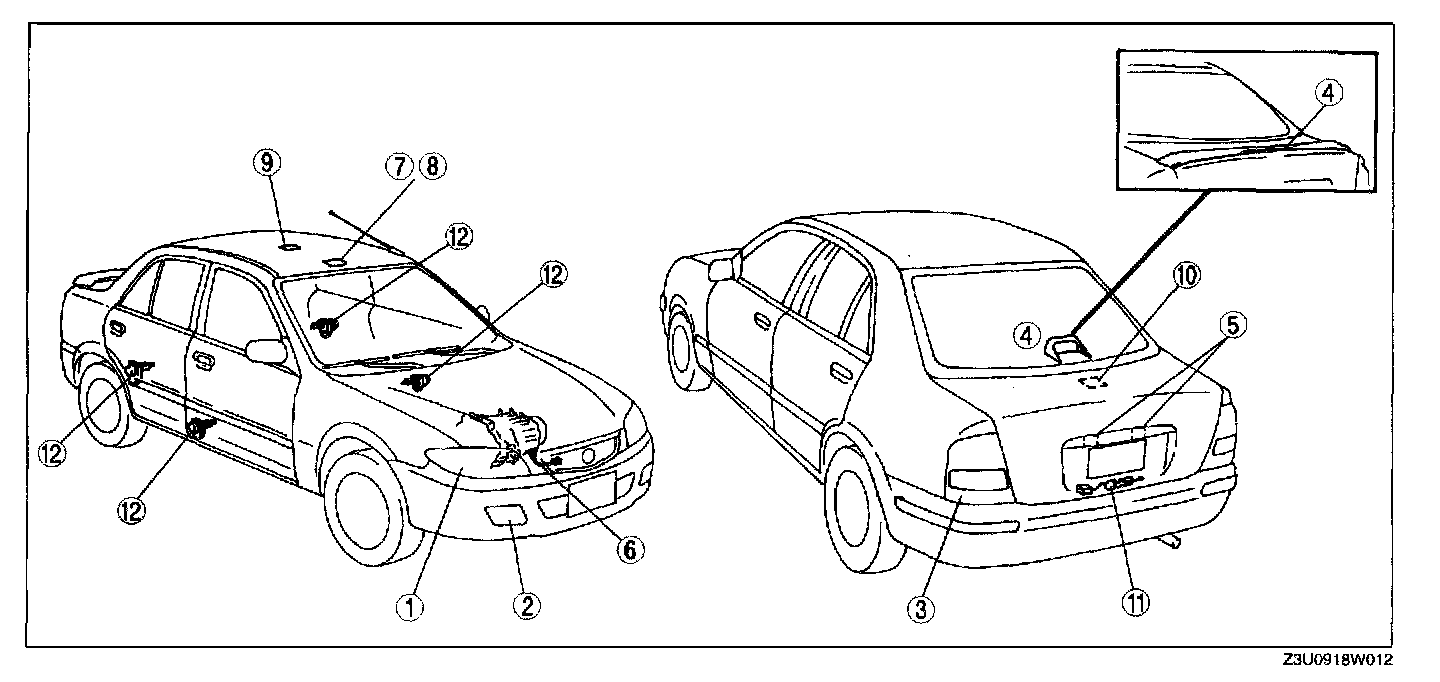

Lighting Systems:

1. Front combination light
2. Front fog light
3. Rear combination light
4. High-mount brake light
5. License plate light
6. Back-up light switch
7. Interior and map light
8. Map light
9. Interior light
10. Trunk compartment light bulb
11. Trunk compartment light switch
12. Door switch

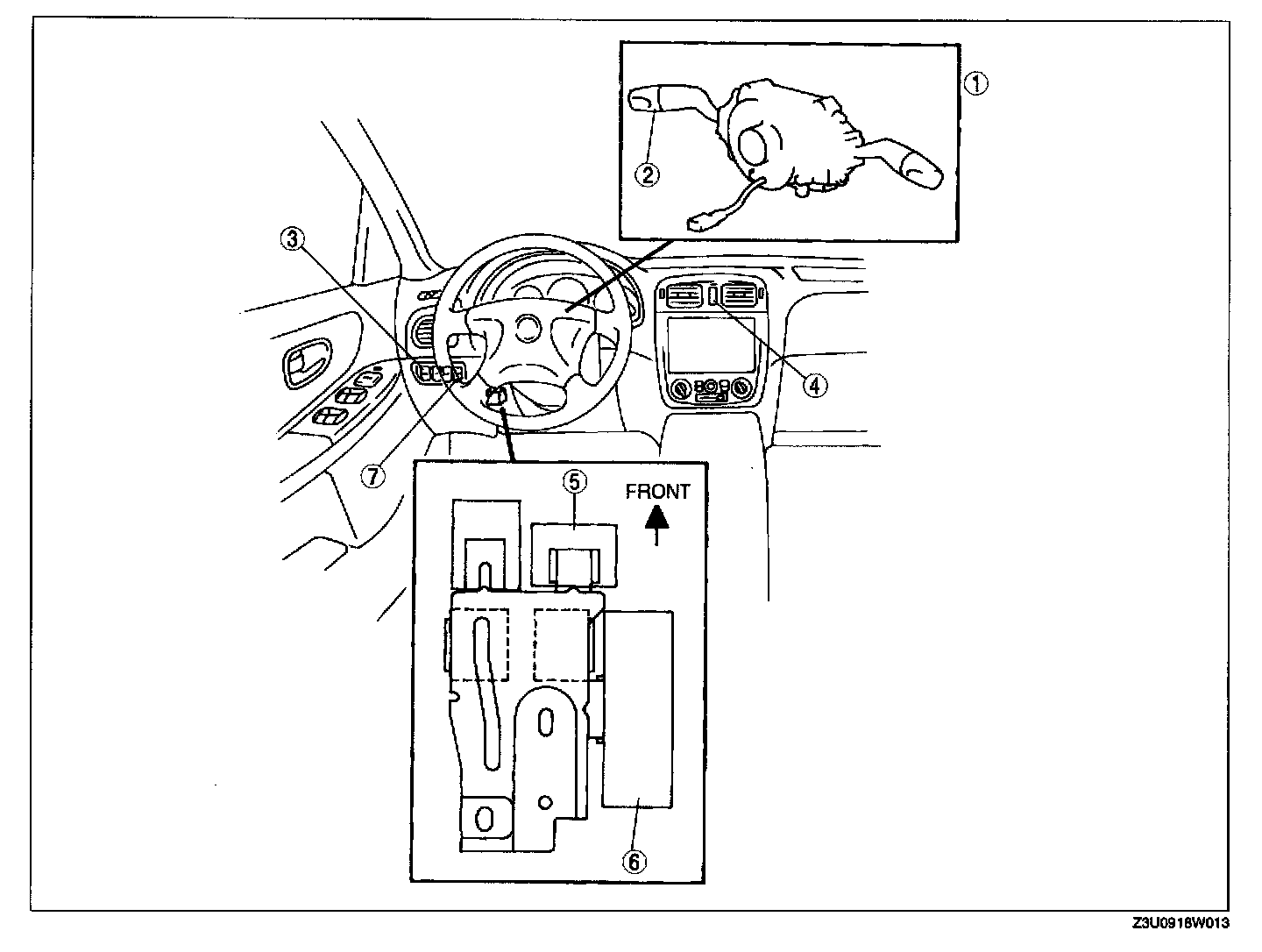

Lighting Systems:

1. Combination switch
2. Light switch
3. Front fog light switch
4. Hazard warning switch
5. Flasher control module
6. DRL control module
7. Panel light control switch
