Ignition Switch: Testing and Inspection
INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the column cover.
3.
Disconnect the
ignition switch connectors.
4.

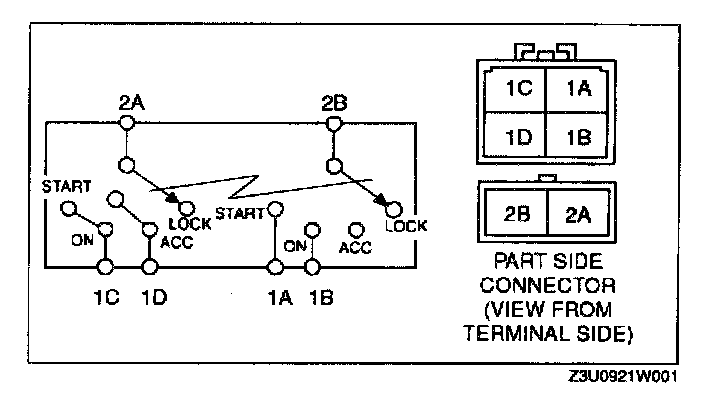

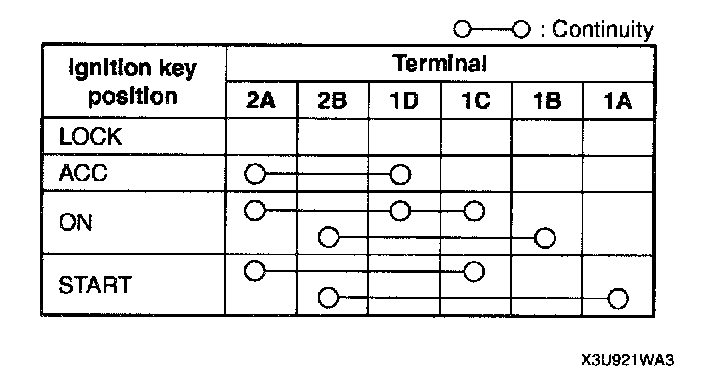

Inspect for continuity between the
ignition switch terminals using an ohmmeter.
-
If not as specified, replace the
ignition switch.
