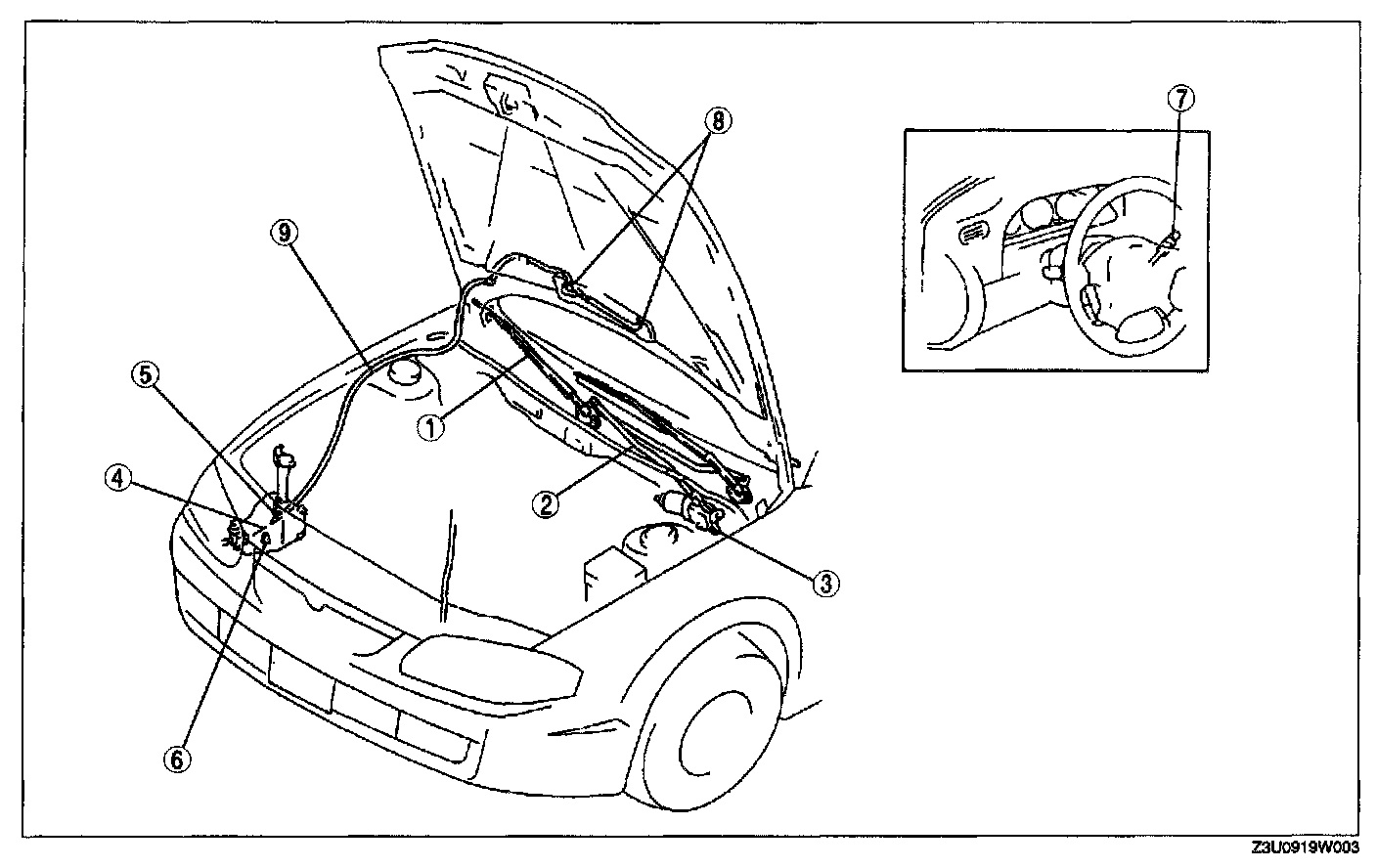

Component Locations
Location Index:
1.
Windshield wiper arm and blade
2.
Windshield wiper link
3.
Windshield wiper motor
4.
Windshield washer tank
5.
Windshield washer motor
6.
Washer fluid-level sensor
7.
Wiper and washer switch
8.
Windshield washer nozzle
9.
Windshield washer hose
