Windshield Washer Switch: Service and Repair
WIPER AND WASHER SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the column cover.
3.

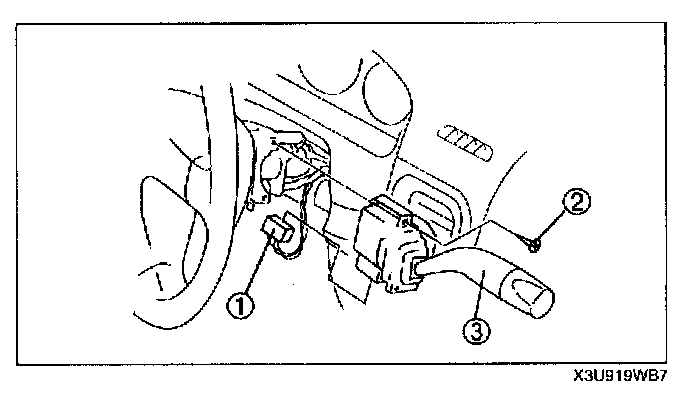

Remove in the order indicated below.
1.
Connector
2.
Screw
3.
Wiper and washer switch
4.
Install in the reverse order of removal.
