Trunk / Liftgate: Testing and Inspection

RELAY INSPECTION

Relay Inspection:

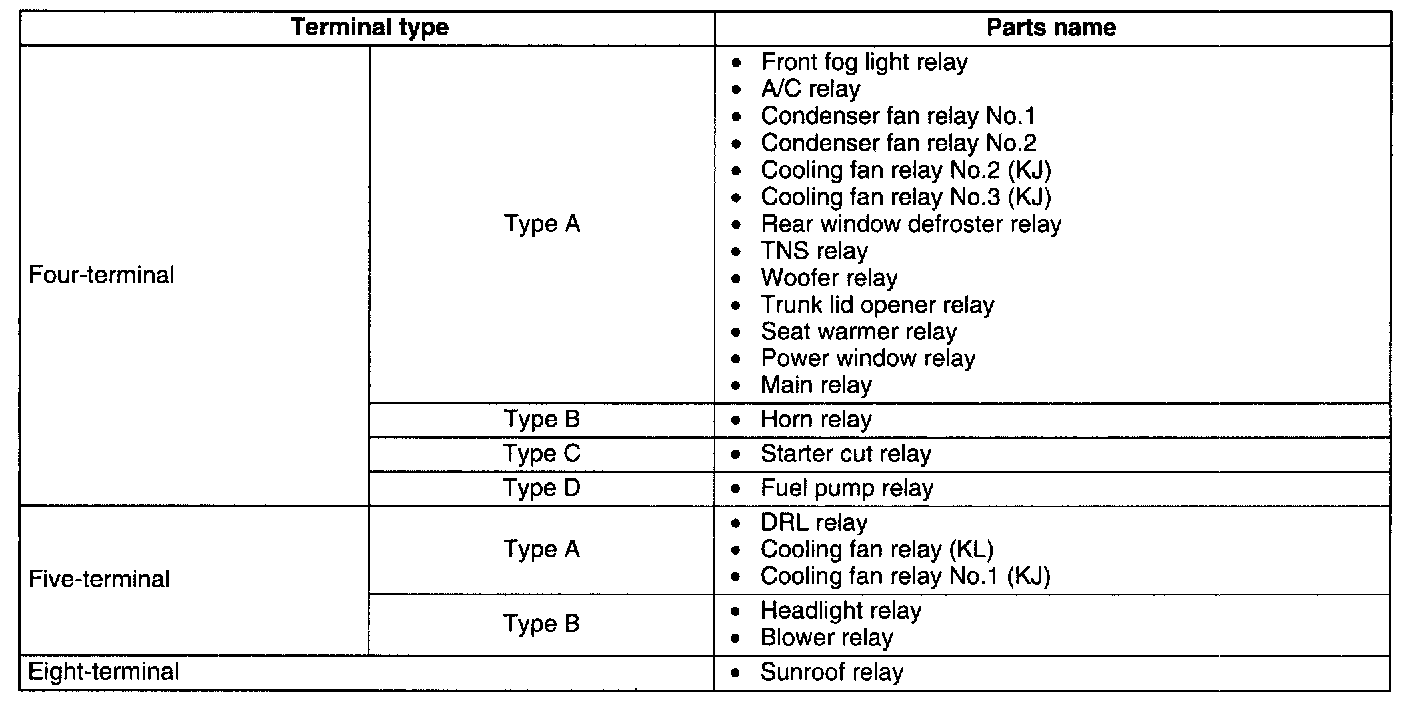

Relay Type

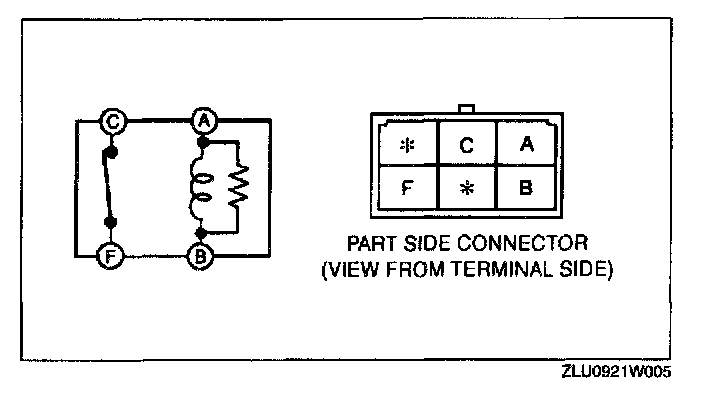

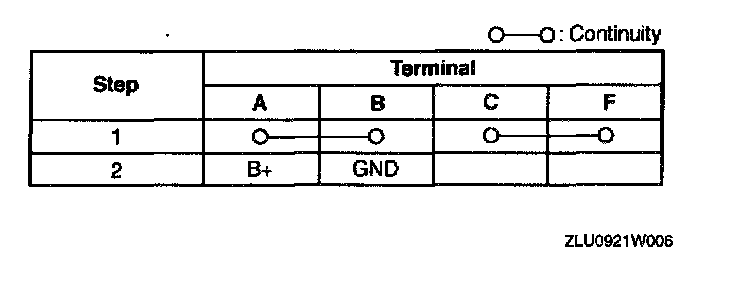

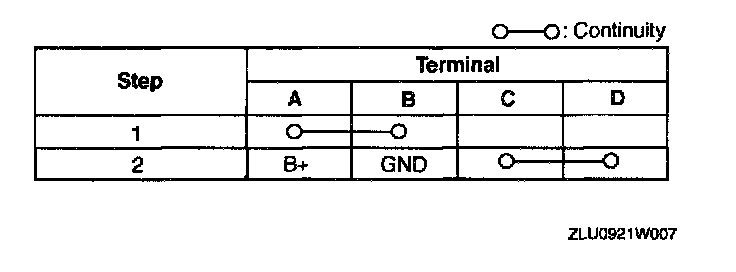

Four Terminal

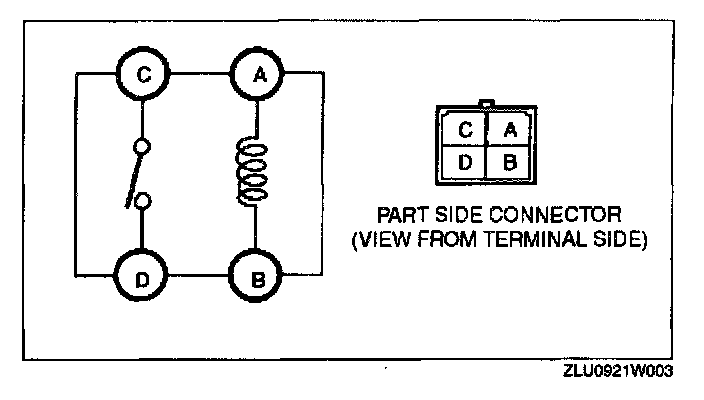

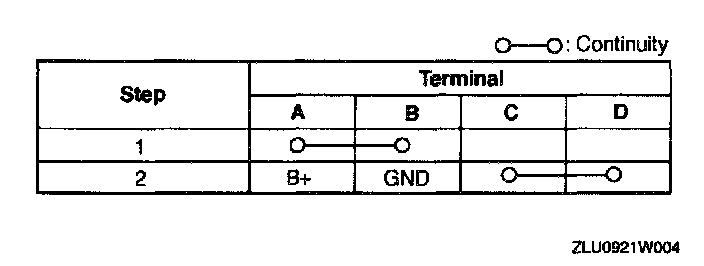

Type A
1. Remove the relay.







2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

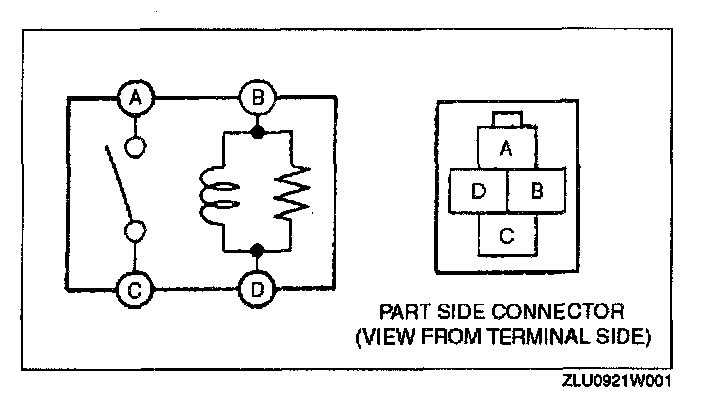

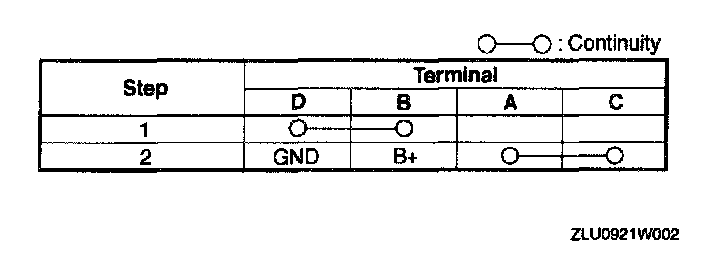

Type B
1. Remove the relay.







2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

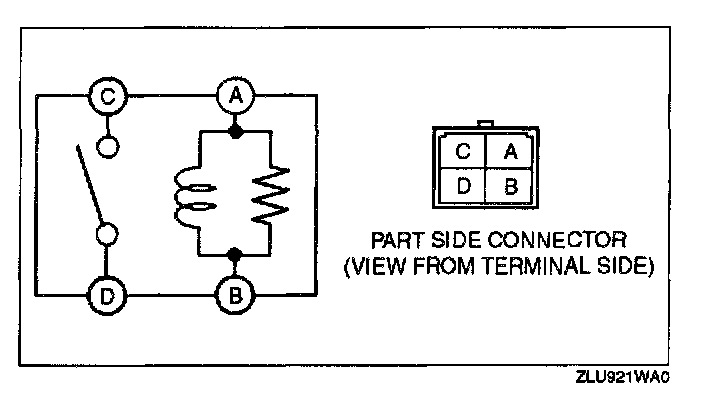

Type C
1. Remove the relay.







2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

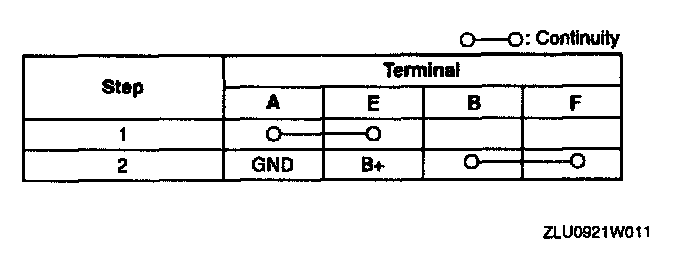

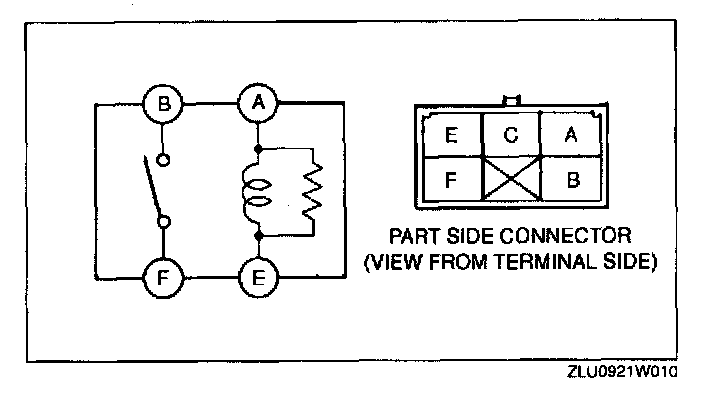

Type D
1. Remove the relay.







2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

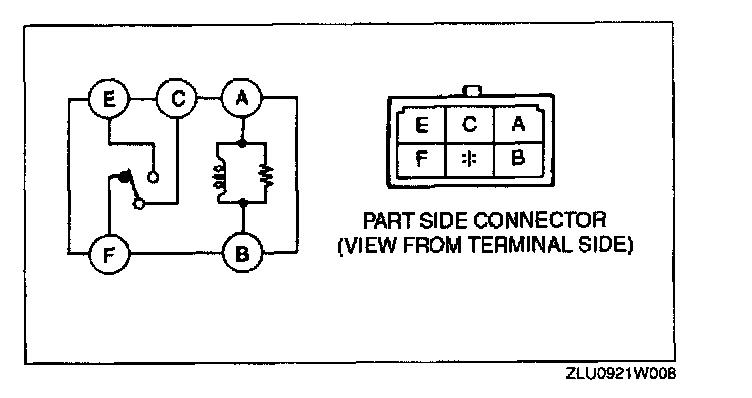

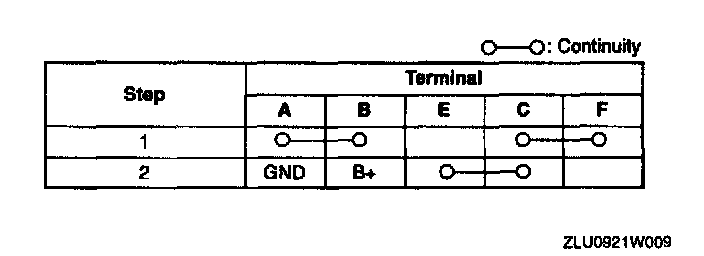

Five-terminal

Type A
1. Remove the relay.







2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

Type B
1. Remove the relay.







2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.

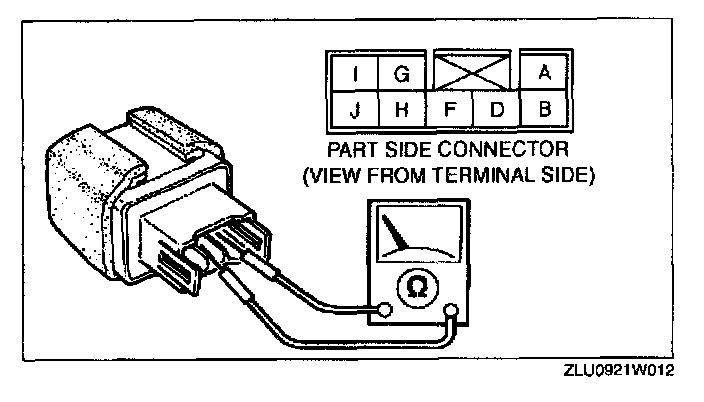

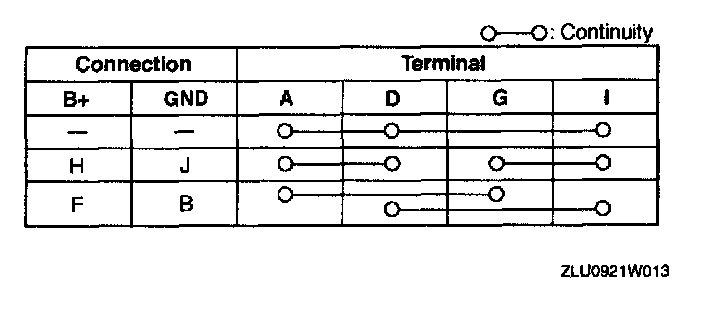

Eight-terminal
1. Remove the relay.







2. Inspect for continuity between the relay terminals using an ohmmeter.
- If not as specified, replace the relay.
