Fog/Driving Lamp: Service and Repair

FRONT FOG LIGHT REMOVAL/INSTALLATION

CAUTION: A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is dirty, excessive heat will build up and the bulb's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

1. Disconnect the negative battery cable.
2. Turn over the mud guard.

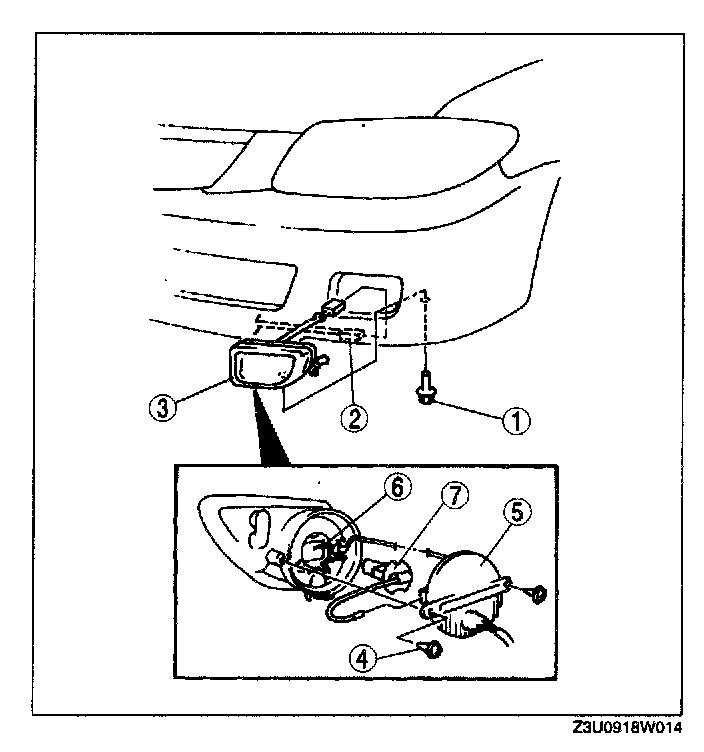

3. Remove in the order indicated below.
1. Bolt
2. Connector
3. Front fog light
4. Screw
5. Cover
6. Bulb pressing wire
7. Front fog light bulb

4. Install in the reverse order of removal.
5. Adjust the front fog light aiming.
