Disassembly/Assembly

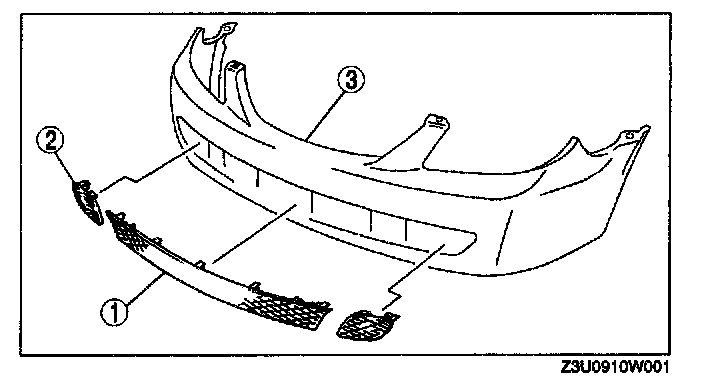

FRONT BUMPER DISASSEMBLY/ASSEMBLY

1. Remove the radiator grille.




2. Disassemble in the order indicated below.
1. Front bumper mesh
2. Hole cover
3. Front bumper fascia

3. Assemble in the reverse order of disassembly.

Front Bumper Mesh Removal Note




1. Push the tabs of front bumper mesh forward from the back of the front bumper fascia to unhook the front bumper mesh.

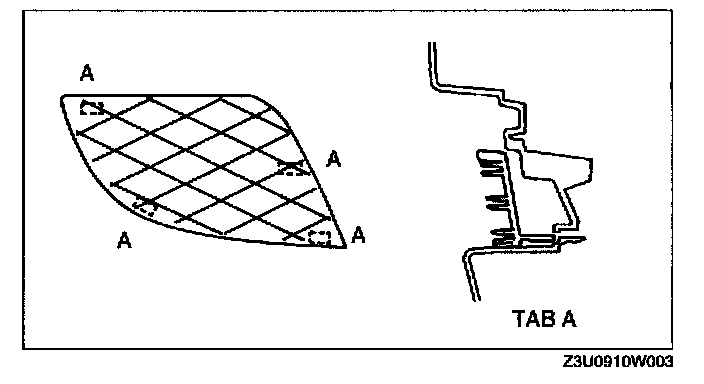

Hole Cover Removal Note




1. Push the tabs on the hole cover forward from the back of the front bumper fascia to unhook the front bumper mesh.
