Compressor Clutch: Testing and Inspection

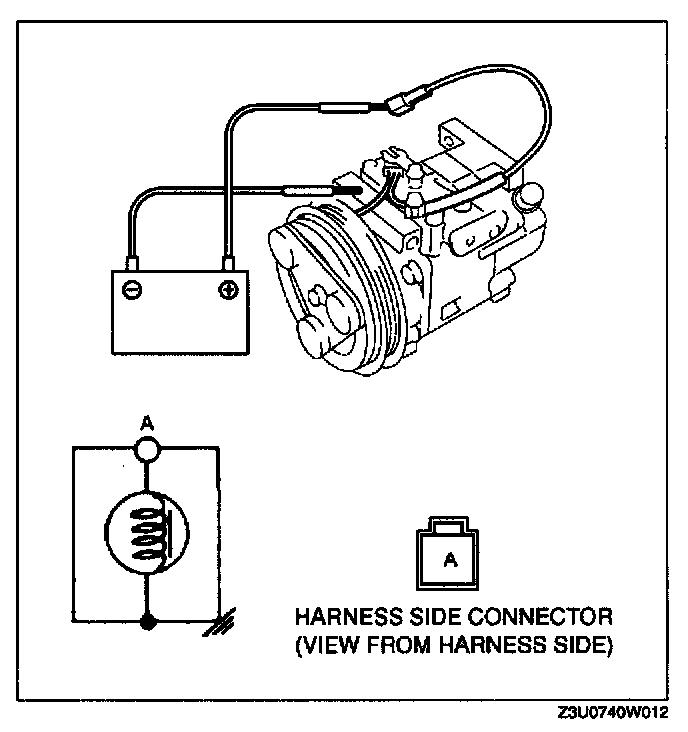

MAGNETIC CLUTCH INSPECTION 1.
Disconnect the magnetic clutch connector.
2.
Connect B+ to terminal A of magnetic clutch and ground to the A/C compressor body.
3.
Verify that the magnetic clutch operates.
-
If not as specified, replace the stator and thermal protector.
