Shift Interlock: Testing and Inspection

INTERLOCK CABLE INSPECTION
1. Remove the interlock cable and lock unit.

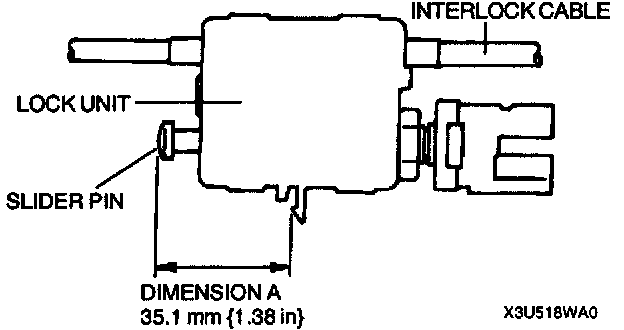

^ If the slider pin protrusion is as specified below (dimension A) verify that the interlock cable moves freely in the lock unit.
^ If not as specified, replace the interlock cable.





2. Install the interlock cable and lock unit.
