Connector Locations

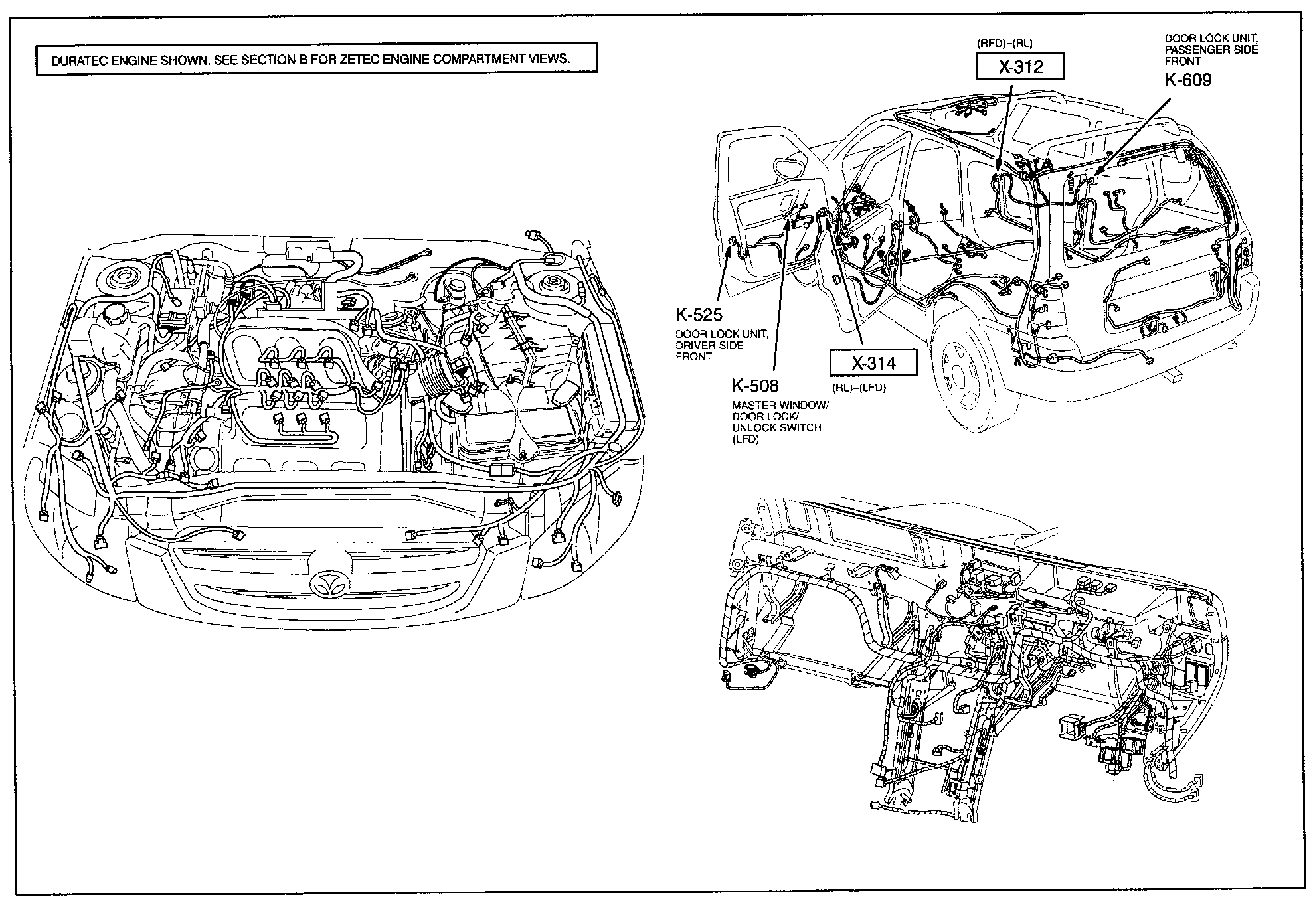

K-2a - Power Door Locks Harness/Connector Symbols:

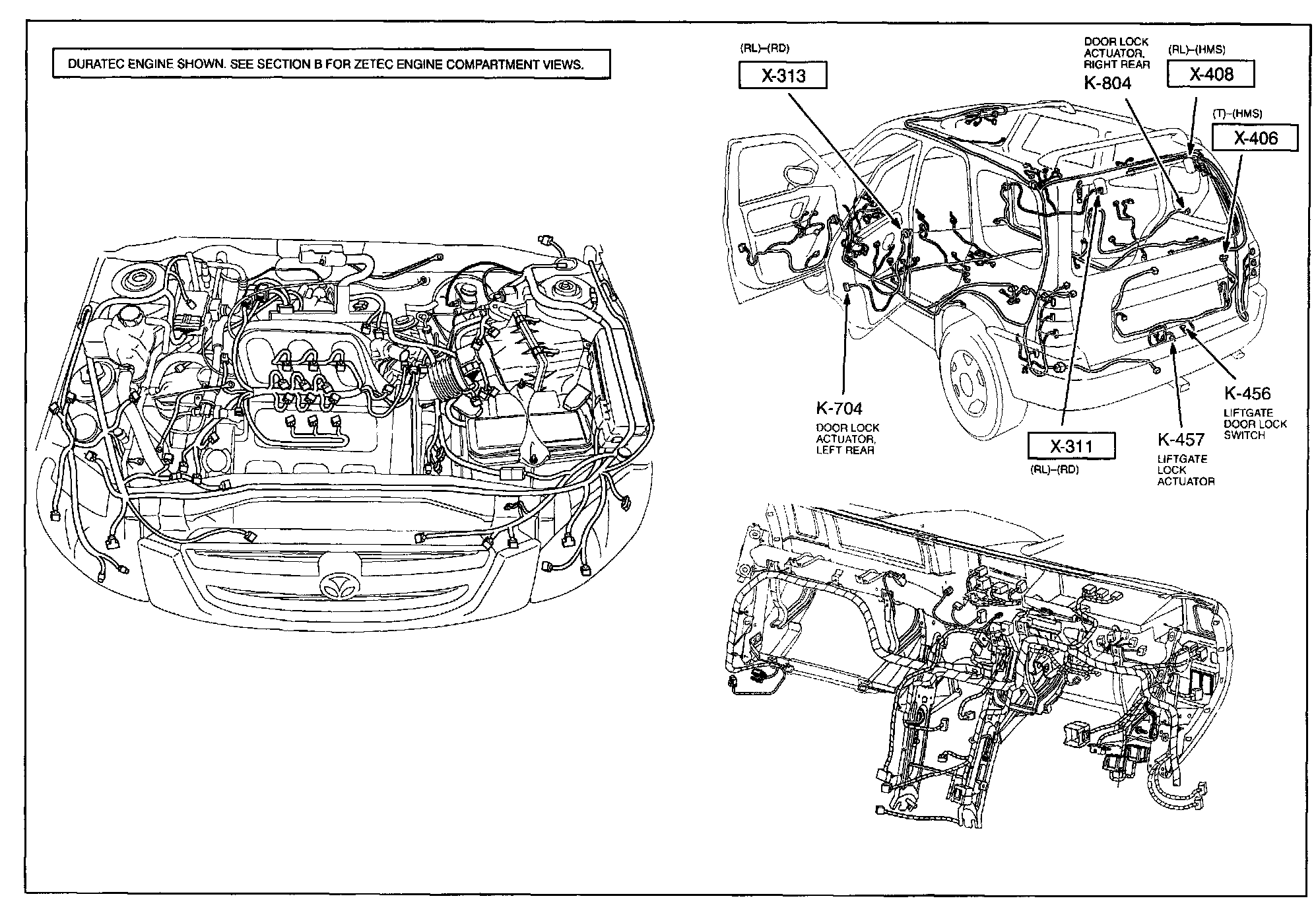

K-2b - Power Door Locks Harness/Connector Symbols:
