Seat Latch: Service and Repair

REAR SEAT BACKREST LATCH

Removal and Installation

1. Remove the rear seat backrest. For additional information, see REAR SEAT BACKREST - SPLIT BENCH or REAR SEAT BACKREST - BENCH.

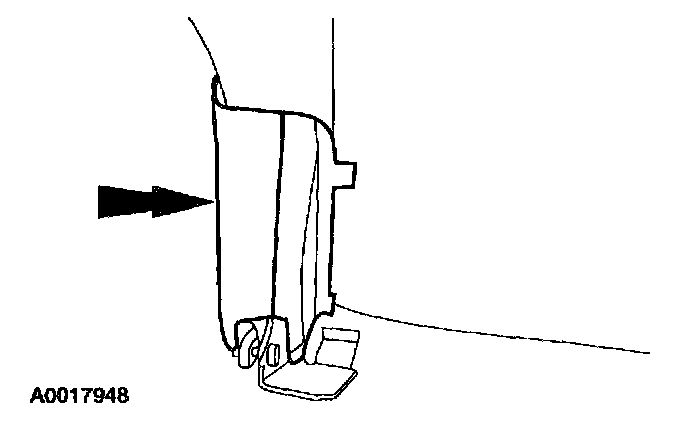

2. Remove the rear seat backrest side trim panel.

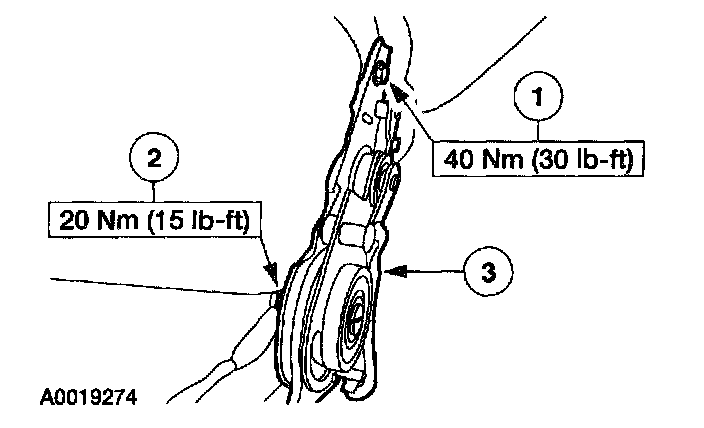

3. Remove the rear seat backrest latch.
1. Remove the bolt.
2. Remove the nut.
3. Remove the latch.

4. To install, reverse the removal procedure.
