Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

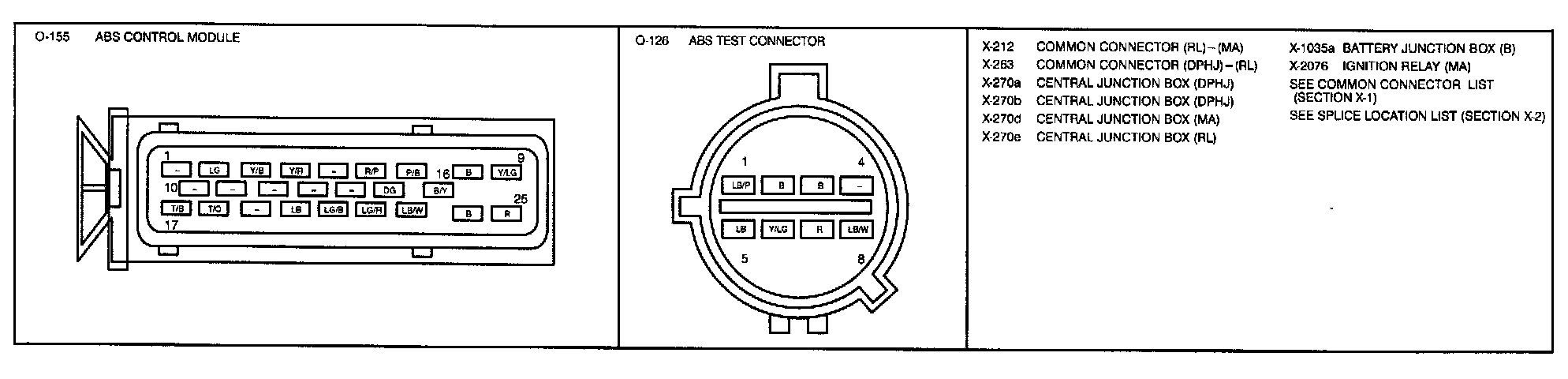

O-a - 4-Wheel Anti-lock Brake System Connectors:

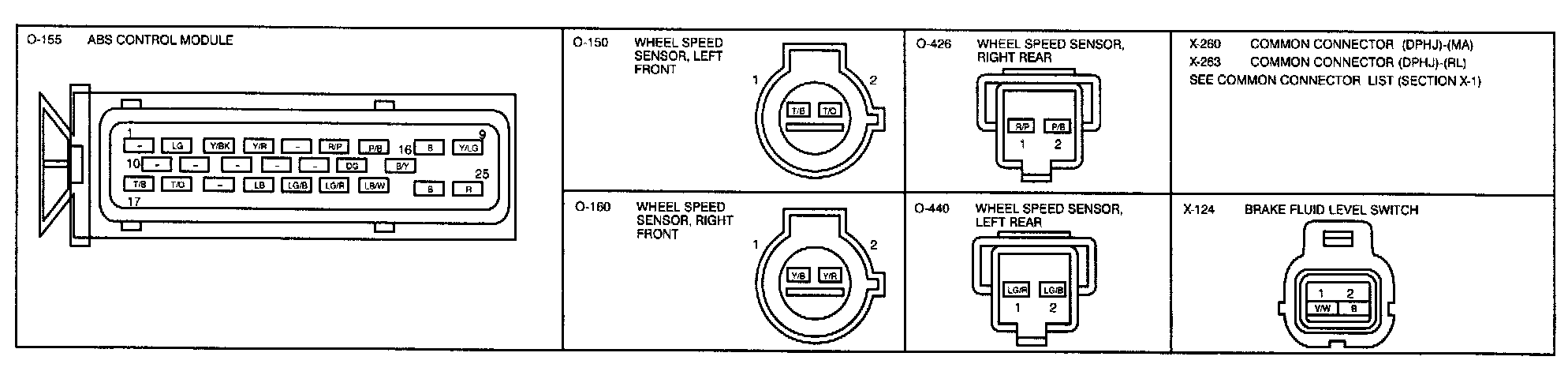

O-b - 4-Wheel Anti-lock Brake System Connectors:
