Radio/Stereo
Radio/Stereo

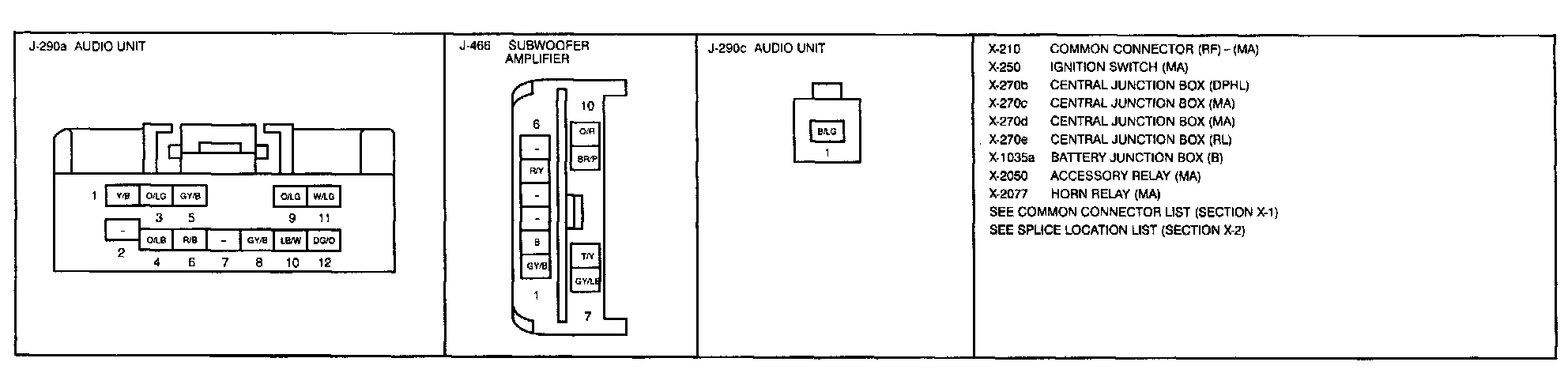

J-a - Audio Unit Connectors:

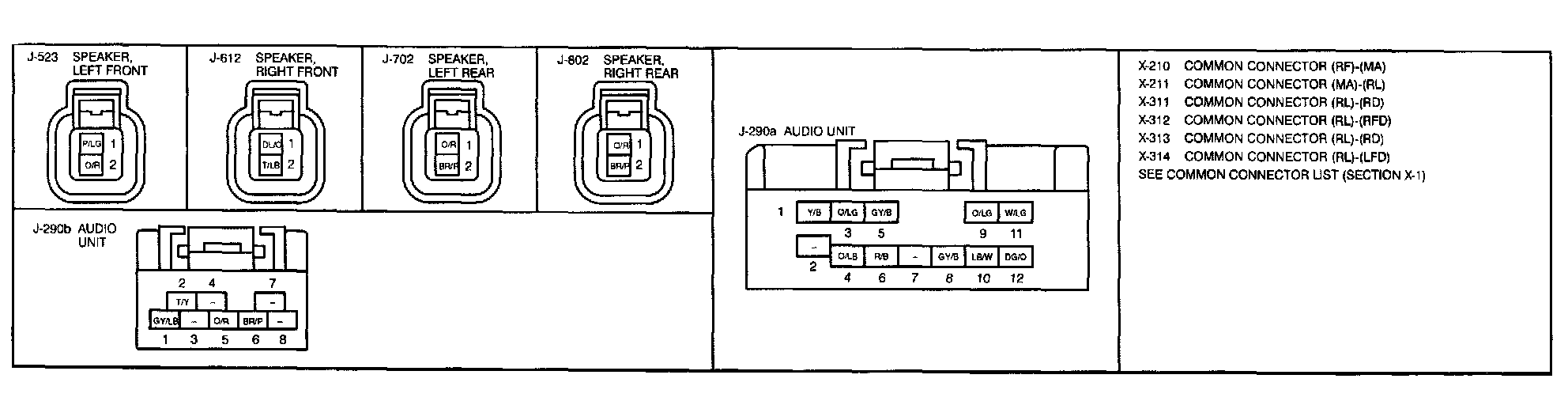

J-b - Audio Unit Connectors (4 Speaker System):

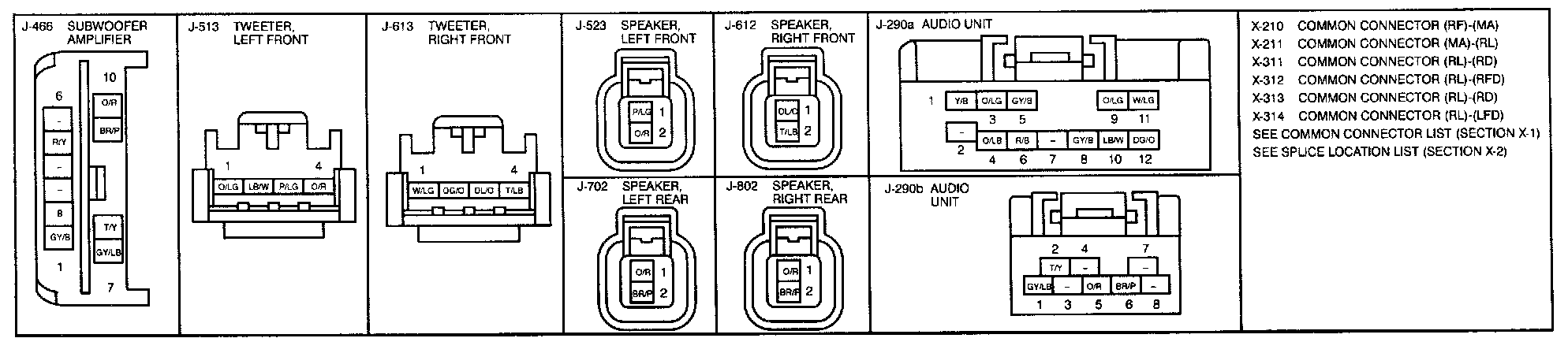

J-b - Audio Unit Connectors (7 Speaker System):
