Antitheft and Alarm Systems

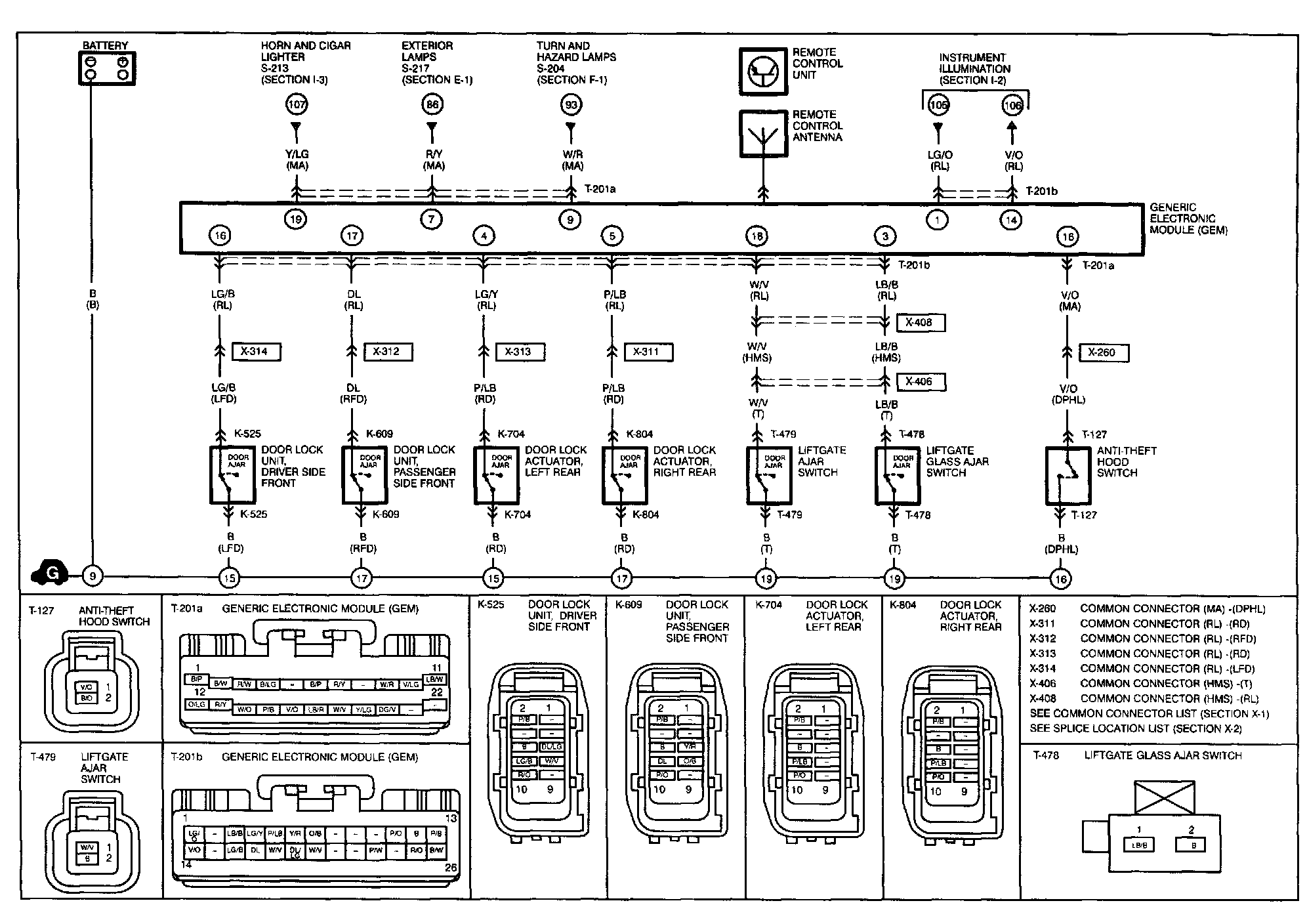

T-2 - Anti-Theft - Perimeter Citcuit:

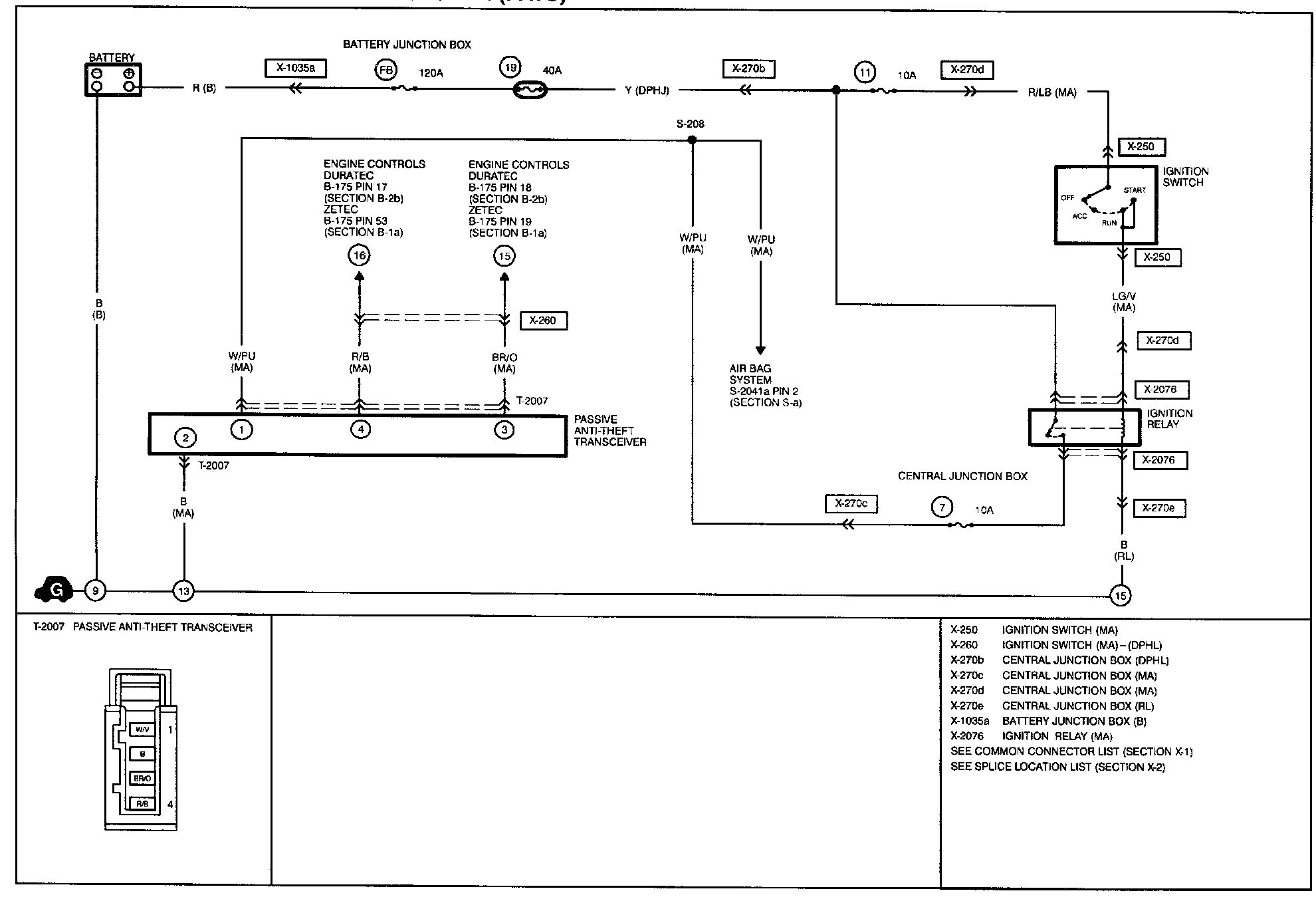

T-3 - Anti-Theft - Passive Anti-Theft System (PATS) Circuit:

Wiring Diagrams

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
