Guide Reaming
Guide Reaming

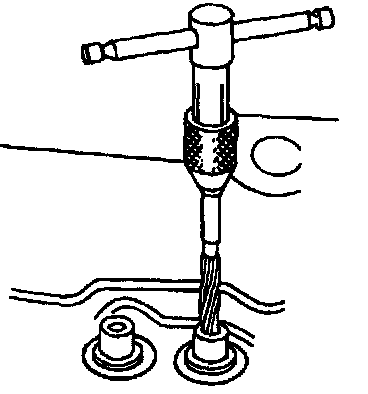

VALVE-GUIDE REAMING
1.
Use a hand-reaming kit to ream the
valve Guide
.
2.
Reface the
valve seat
.
3.
Clean the sharp edges left by reaming.
