Connector Locations
Connector Locations

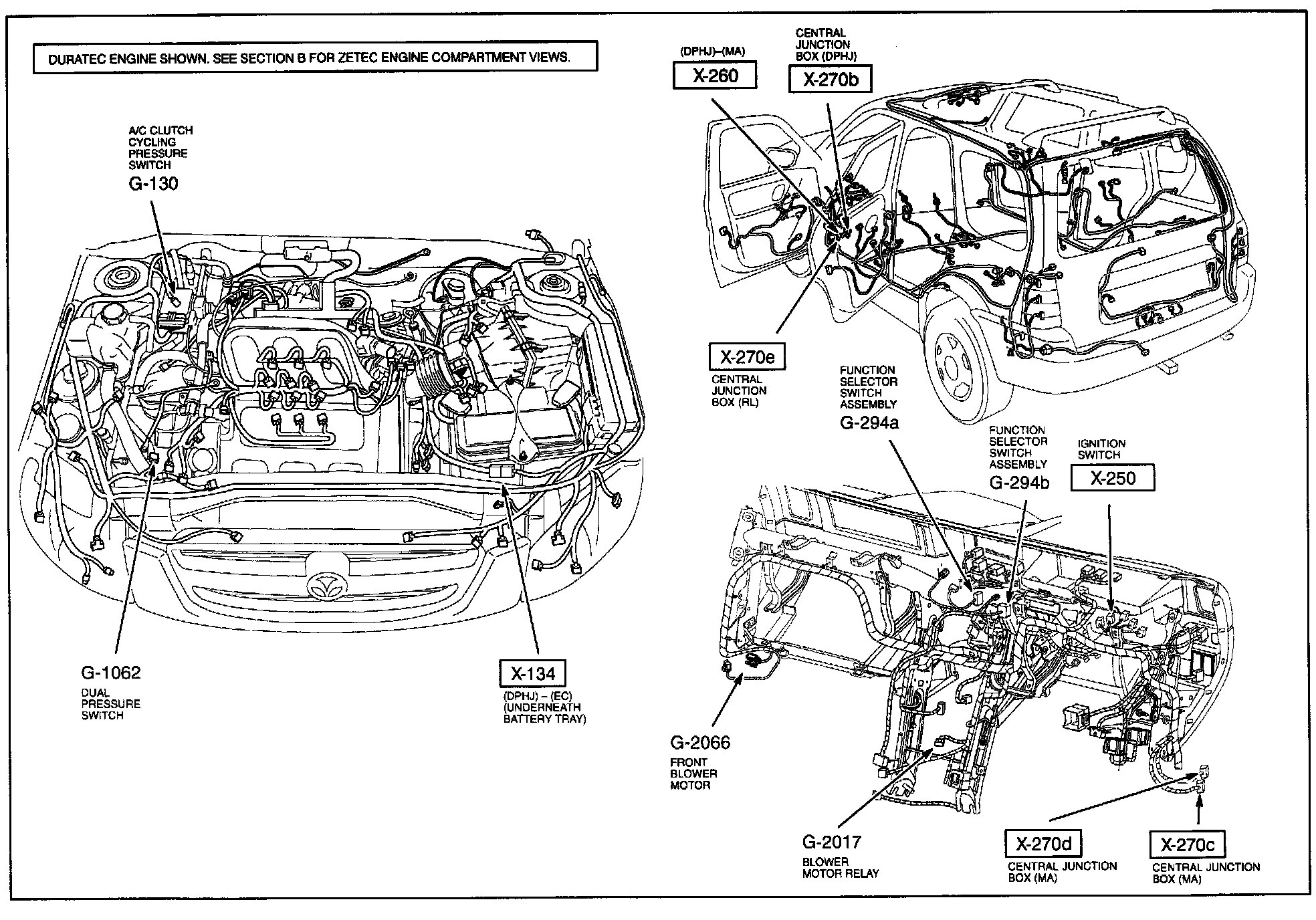

G-a - Heating / A/C System Harness/Connector Symbols:

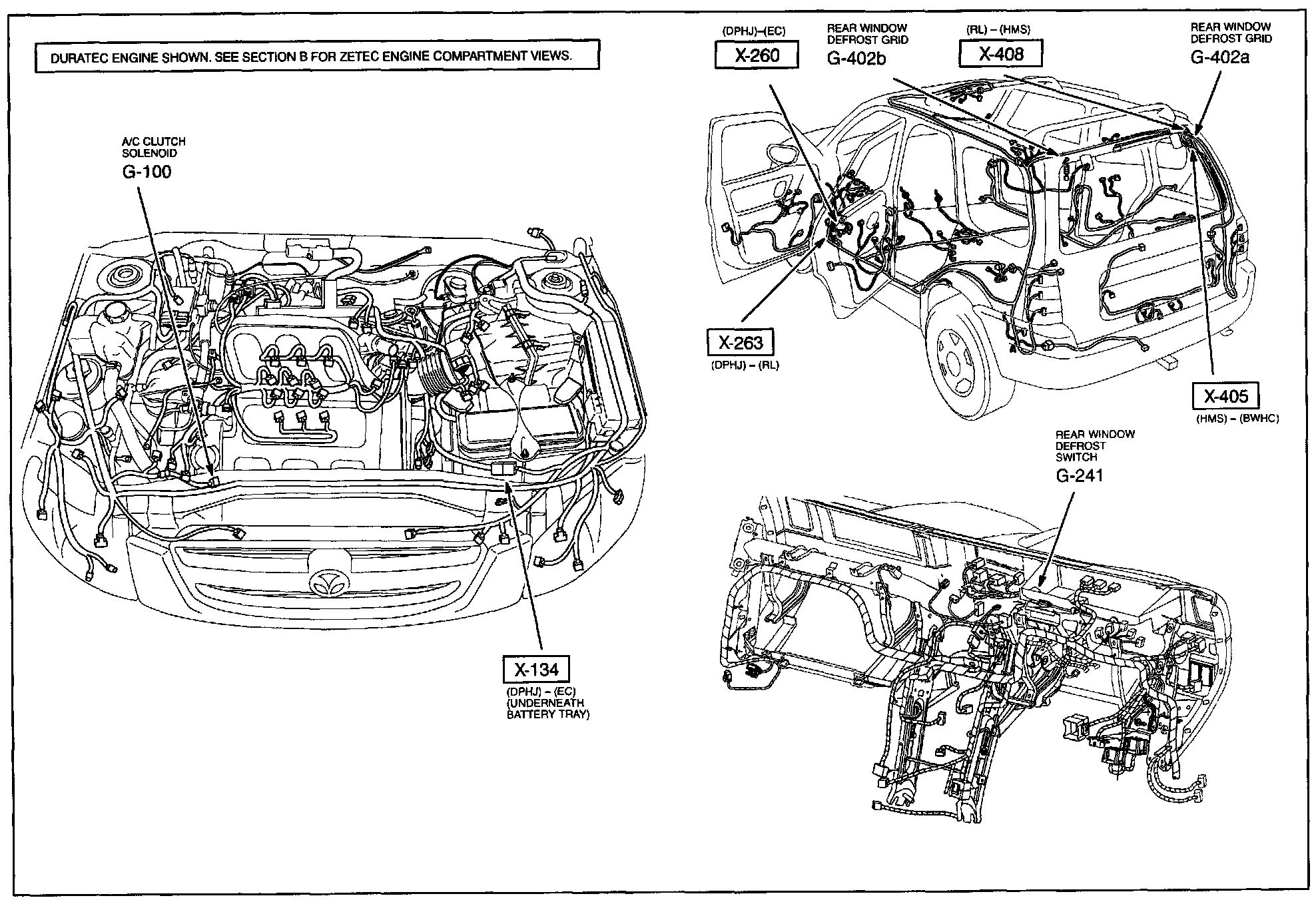

G-b - Heating / A/C System Harness/Connector Symbols:
