Low Pressure Sensor / Switch: Service and Repair

Removal and Installation

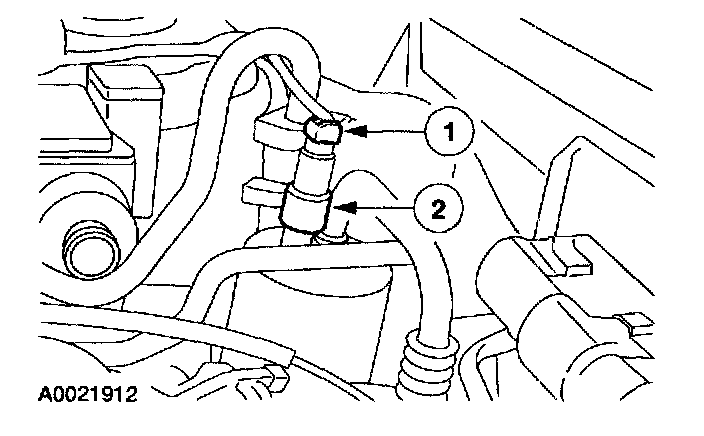

1. Remove the A/C cycling switch.
1. Disconnect the A/C cycling switch electrical connector.
2. Remove the A/C cycling switch.

2. To install, reverse the removal procedure.
1. Lubricate the O-ring seals with PAG Compressor Oil.
