Locations
>>
Connector Locations
>>

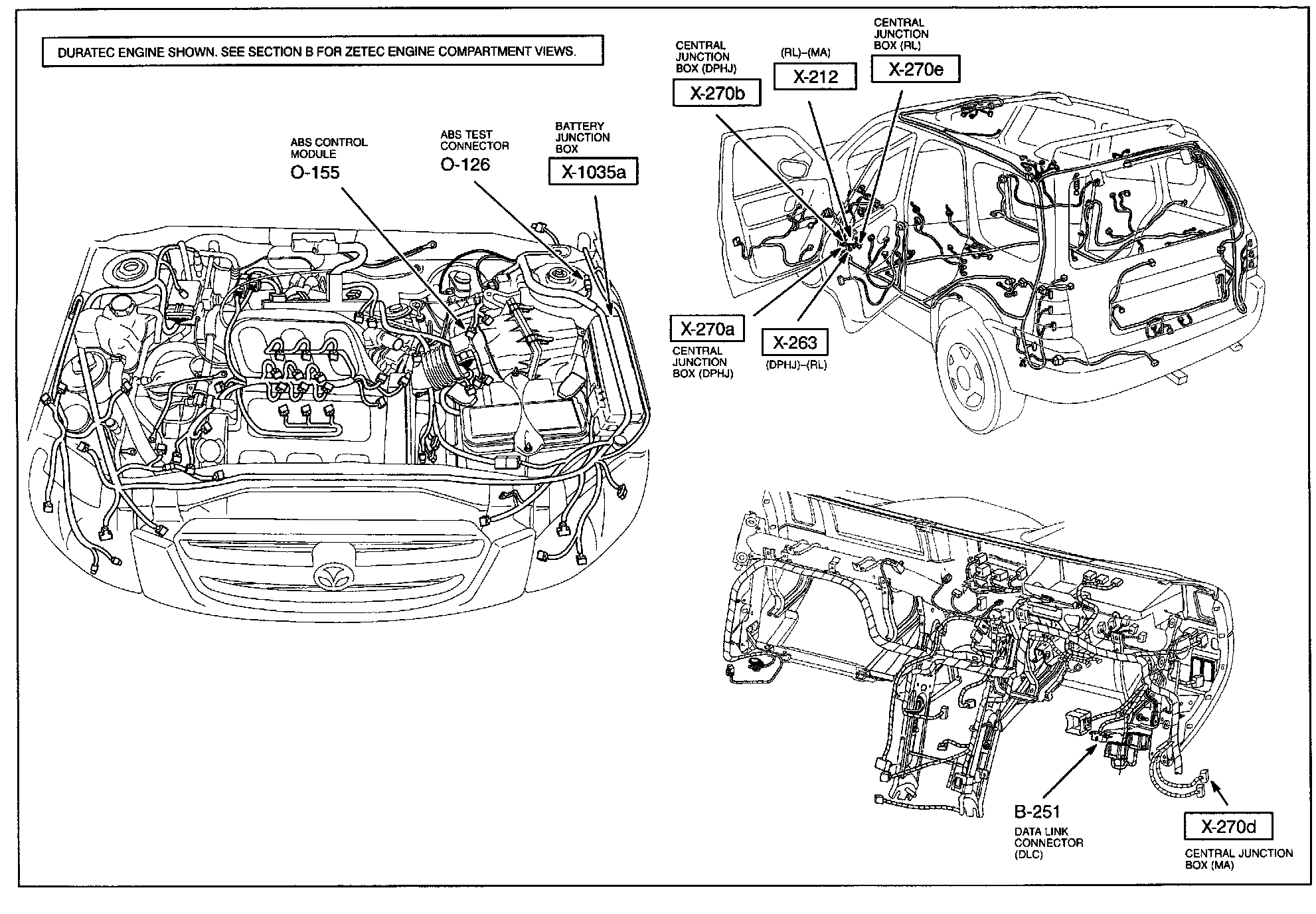

O - 4-Wheel Anti-Lock Brake System

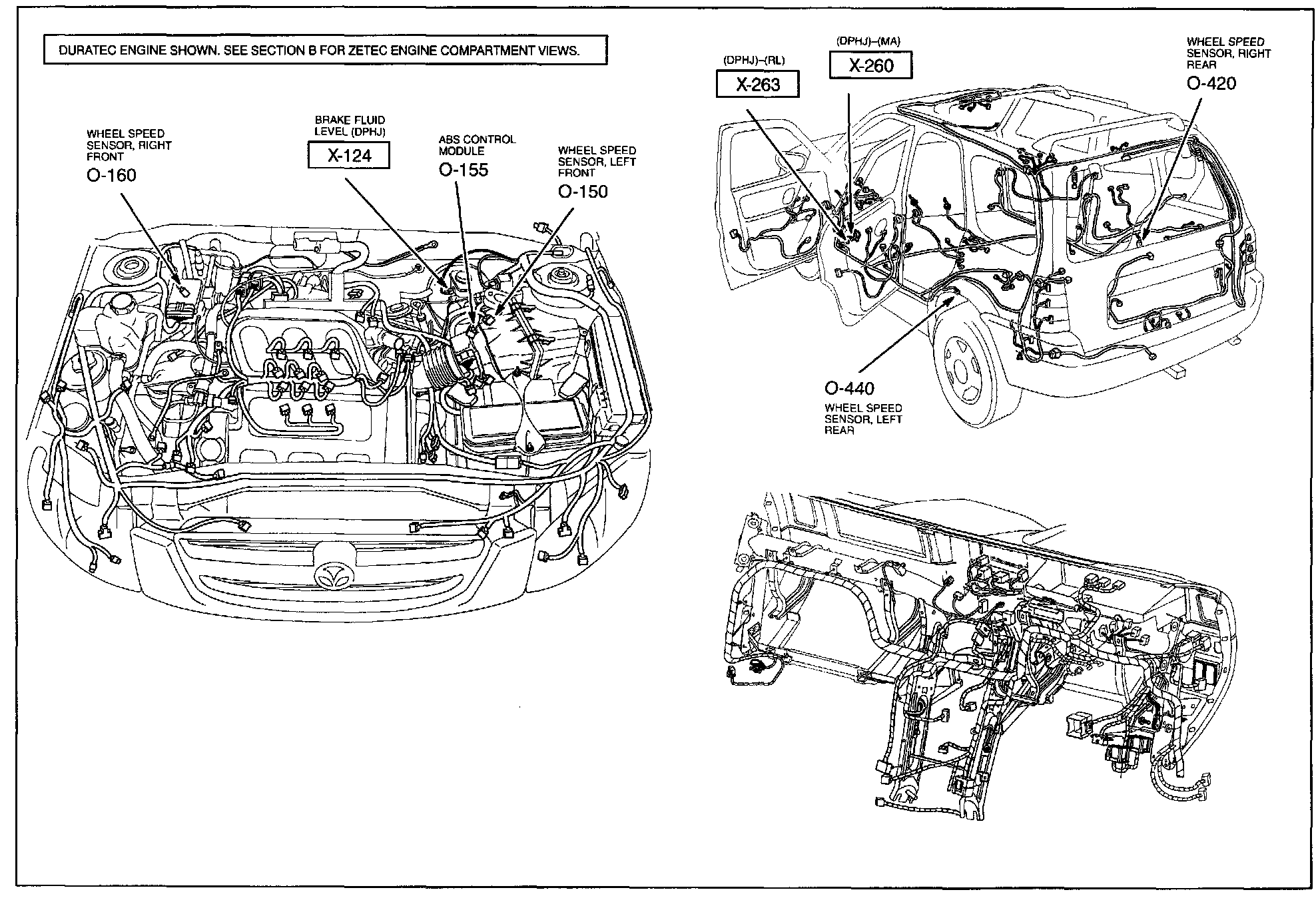

O - 4-Wheel Anti-Lock Brake System
O-a - 4-Wheel Anti-lock Brake System Harness/Connector Symbols:
O-b - 4-Wheel Anti-lock Brake System Harness/Connector Symbols:
