Electrical Diagrams

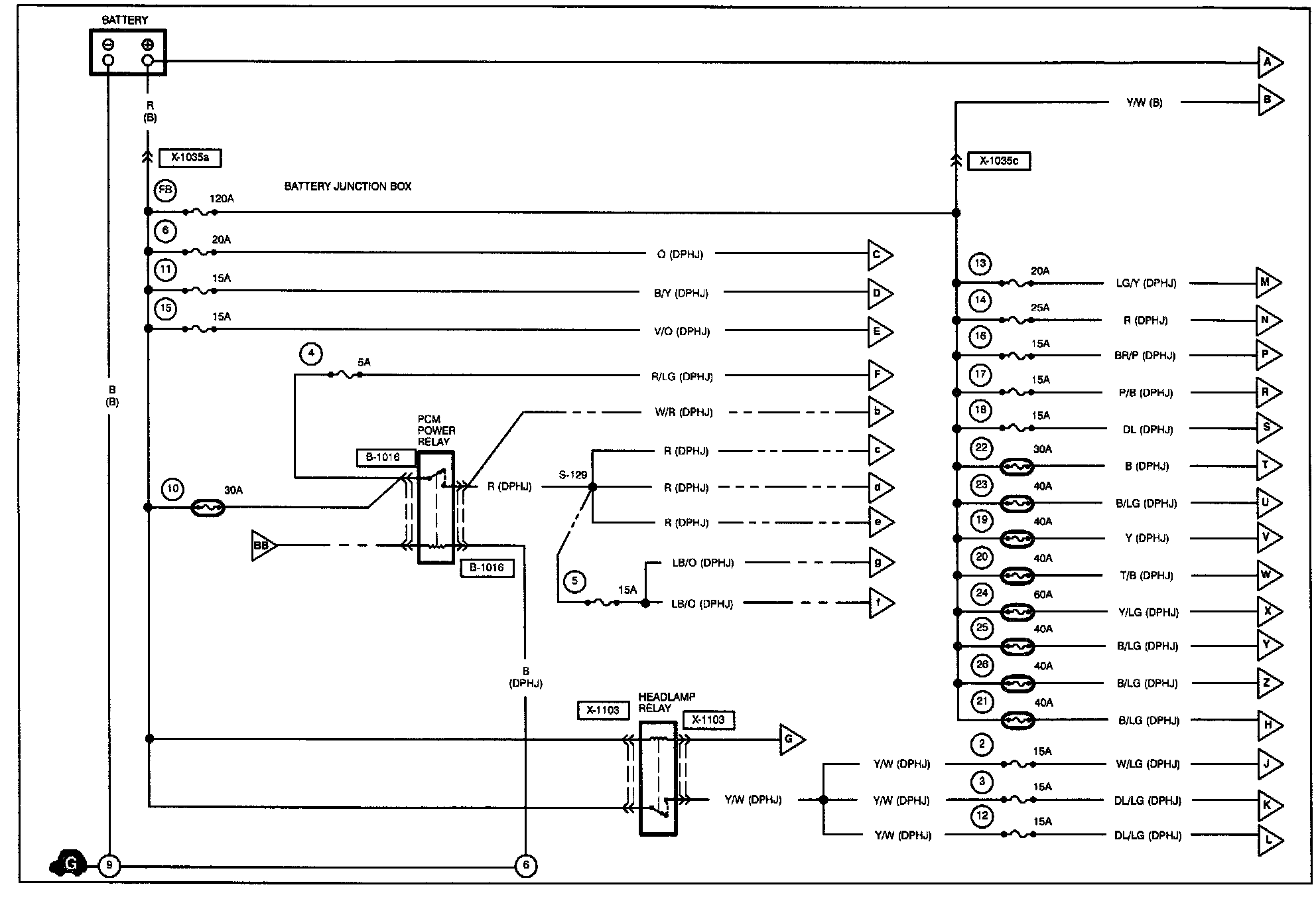

W-a - Electrical Wiring Schematic:



W-b - Electrical Wiring Schematic:

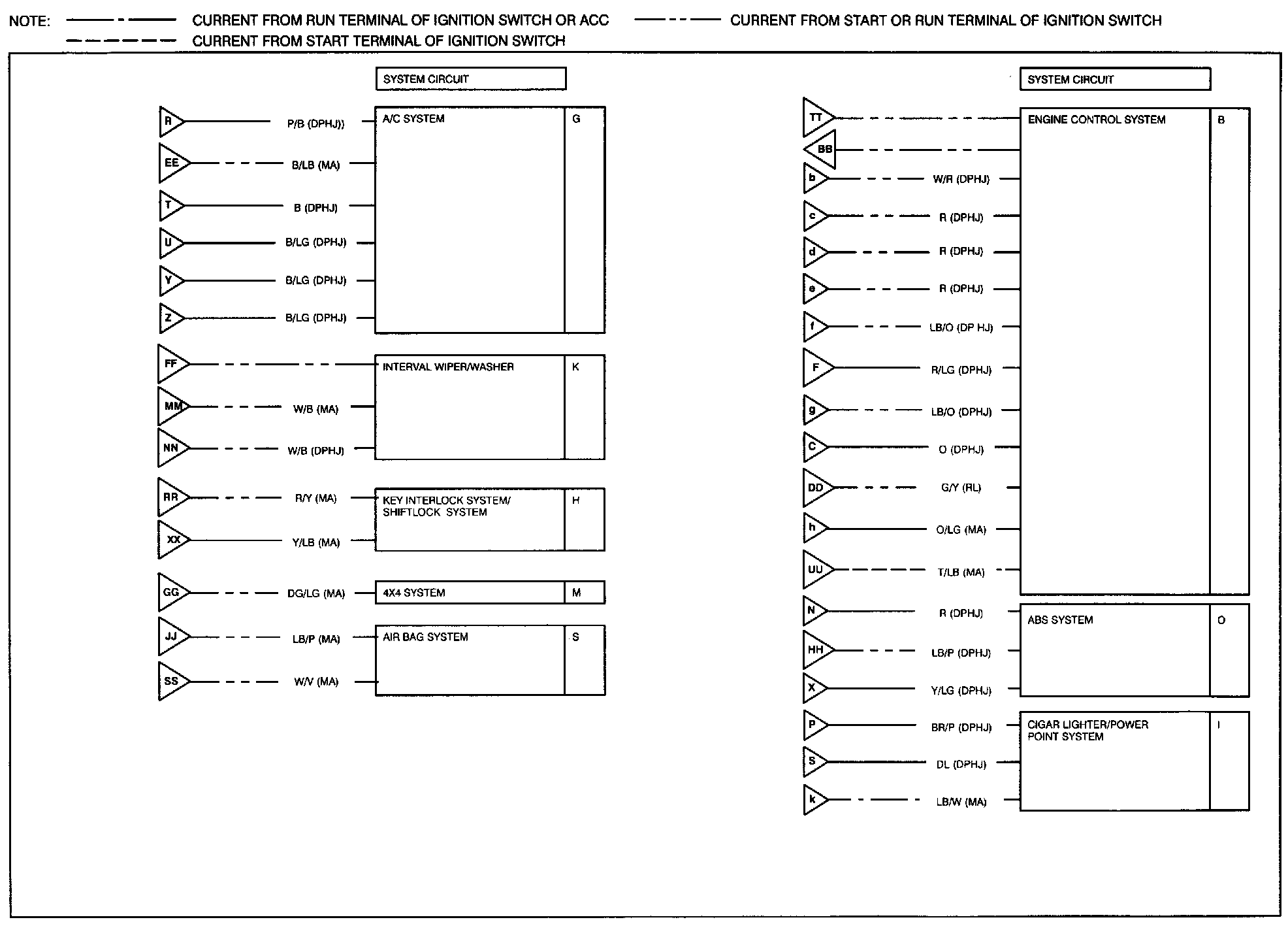

W-c - Electrical Wiring Schematic:

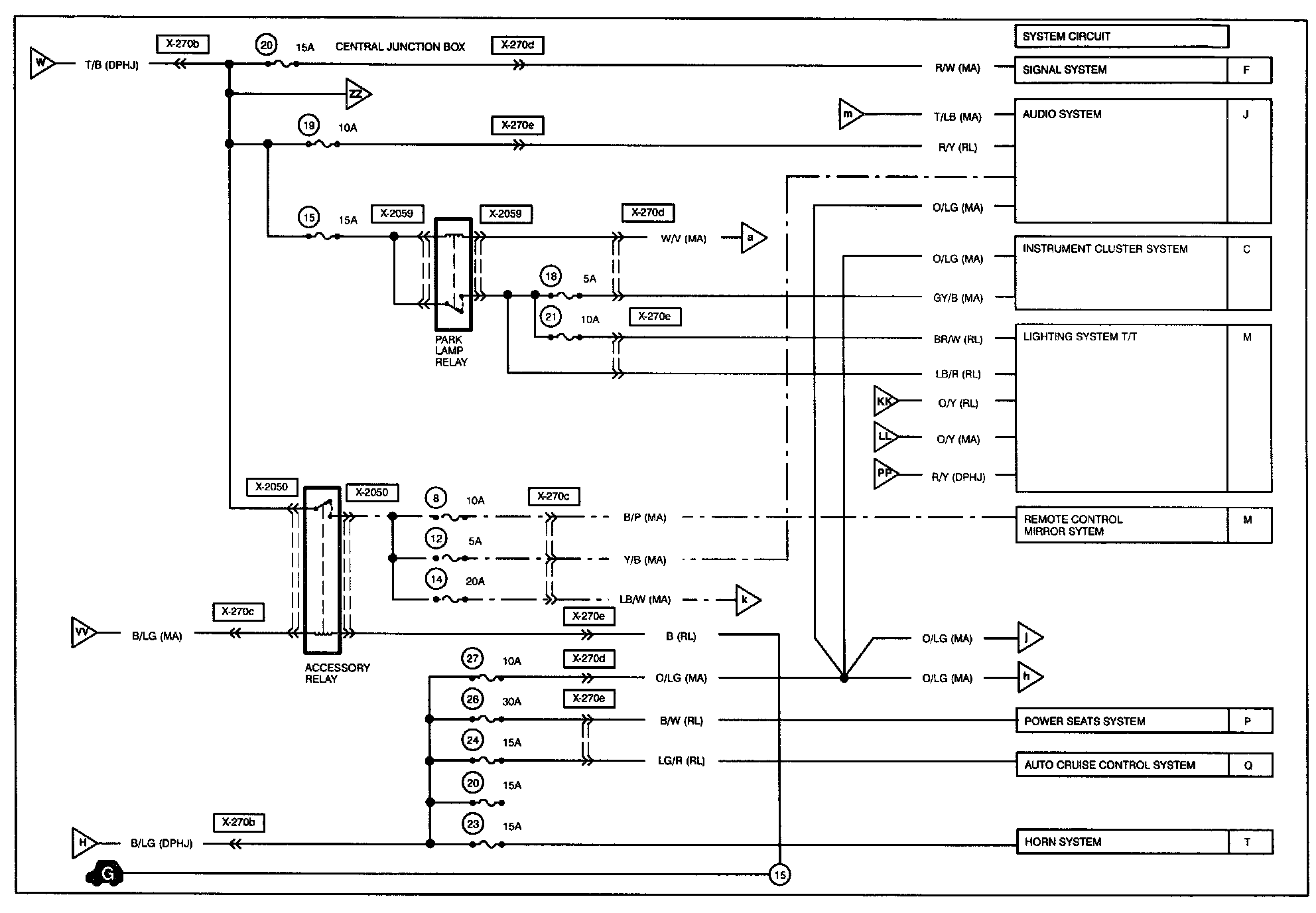

W-d - Electrical Wiring Schematic:
