Fluid Line/Hose: Service and Repair

Removal and Installation
1. Remove the front bumper cover.

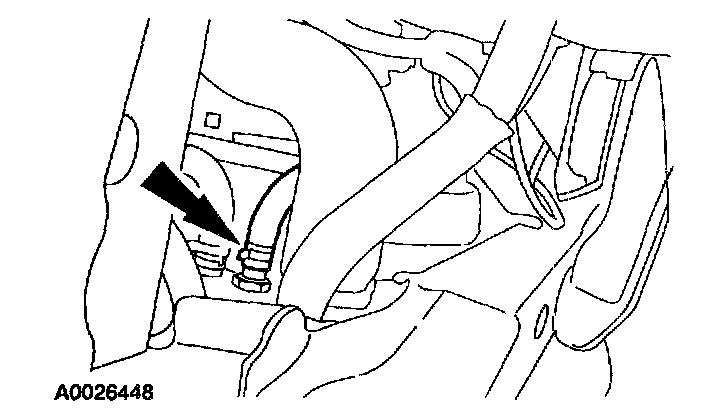

2. Disconnect the cooler tubes.

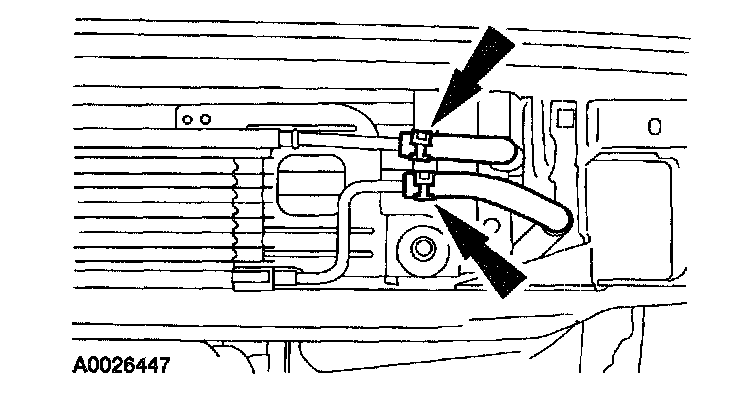

3. Disconnect the front cooler tube.

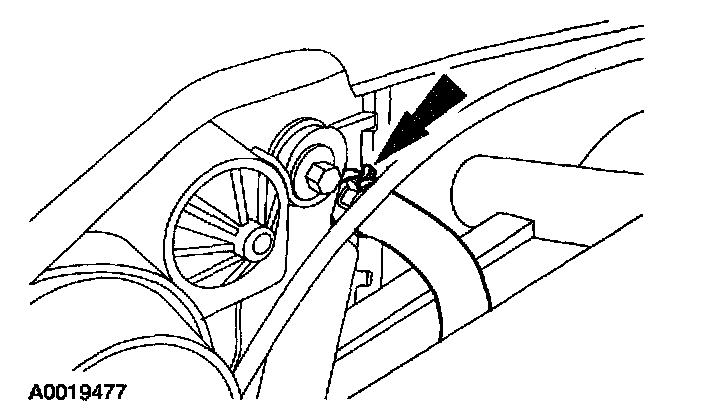

4. Disconnect and remove the front cooler tube.

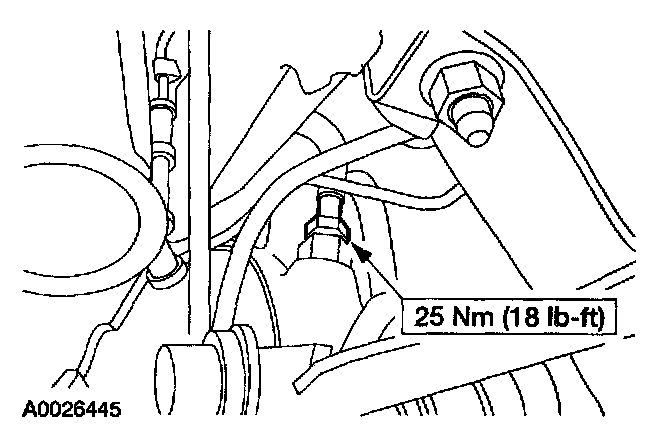

5. Disconnect the rear cooler tube.

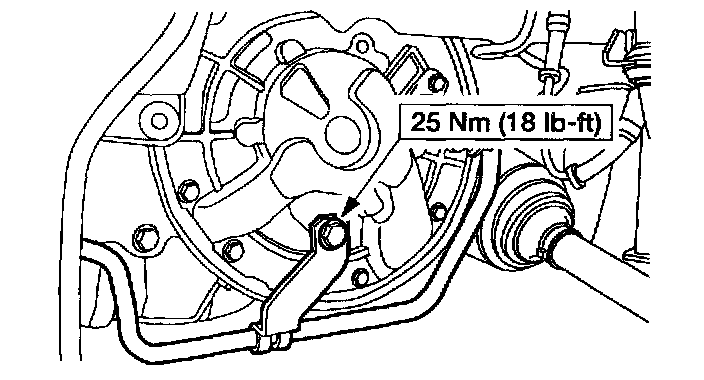

6. Remove the rear transaxle cooler tube bracket bolt and the cooler tube.
7. Lower the vehicle.

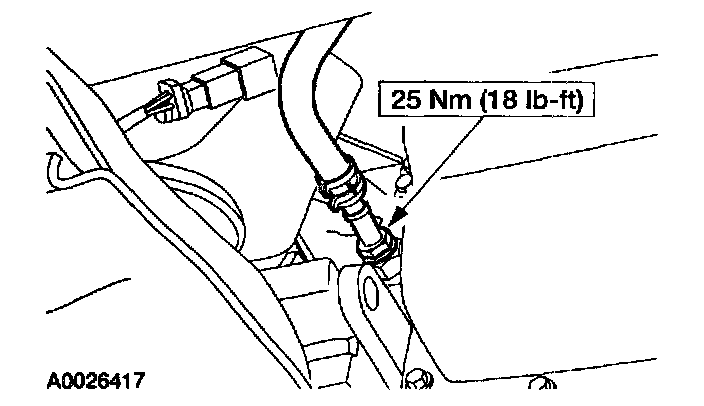

8. Disconnect and remove the integral to auxiliary cooler tube.
9. To install, reverse the removal procedure.
1 Fill the transaxle to the specified level.
