Automatic Transmission/Transaxle: Locations
BUSHINGS, BEARING AND THRUST WASHER LOCATOR

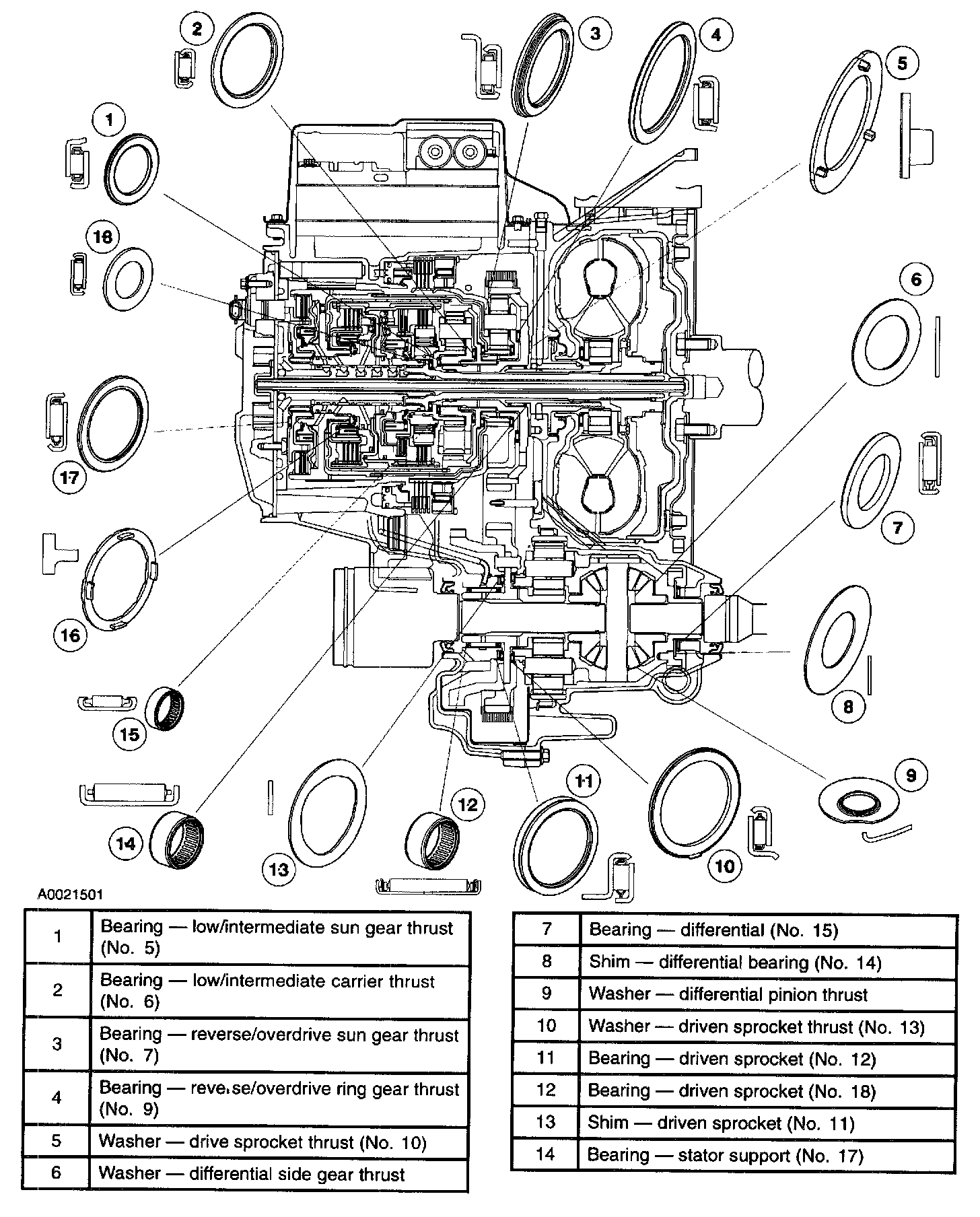

Exploded View/Legend ID 1 - 14

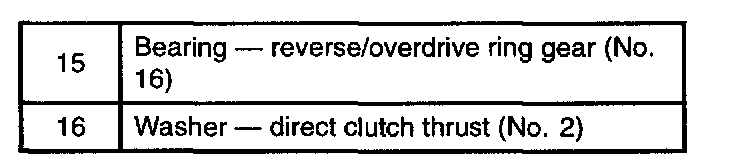

Legend ID 15 and 16

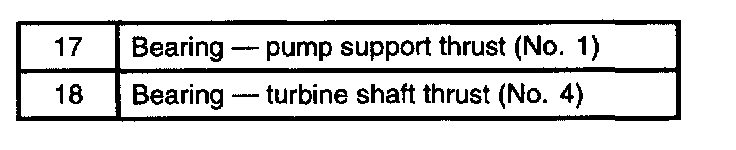

Legend ID 17 and 18
