Chain Sprockets

Disassembly Note

Caution: Clamp the sprocket in a soft-jawed vise.





1. Using the special tools, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.





2. Using the special tools, remove the No. 17 stator support bearing, as necessary.

Assembly Note

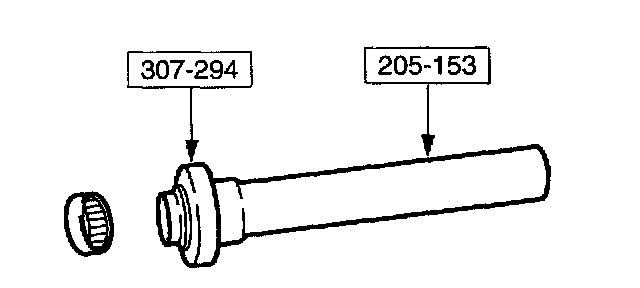

1. Position the No. 16 reverse/overdrive ring gear bearing on the special tools.
1 Position the bearing with the part number facing toward the handle of the special tool.

Note: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

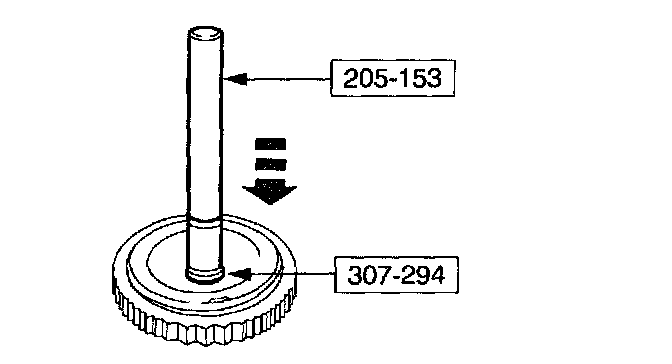

2. Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.





3. Position the No. 17 stator support bearing on the special tools.
1 Position the bearing with the part number facing toward the handle of the special tool.

Note: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

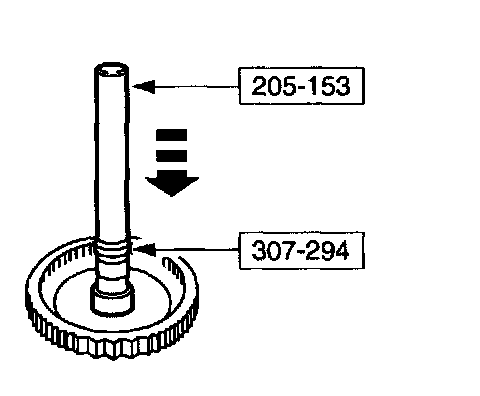

4. Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.
