Shift Boot: Service and Repair

Removal and Installation

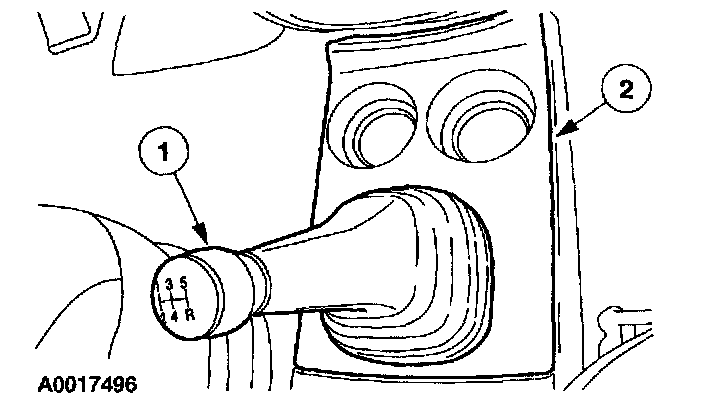

1. Remove the center console trim and gearshift lever boot.
1 Remove the gearshift lever knob.
2 Remove the center console trim and gearshift lever boot.





2. Remove the gearshift lever boot.
1 Remove the screws.
2 Remove the gearshift lever boot.
3. To install, reverse the removal procedure.
